PS, IEC, RECP, 2P3W, 100A 125V,4X/69K by Hubbell Wiring Device-Kellems
- Part Number: HBL3100R4W
- UPC: 00783585403113
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview

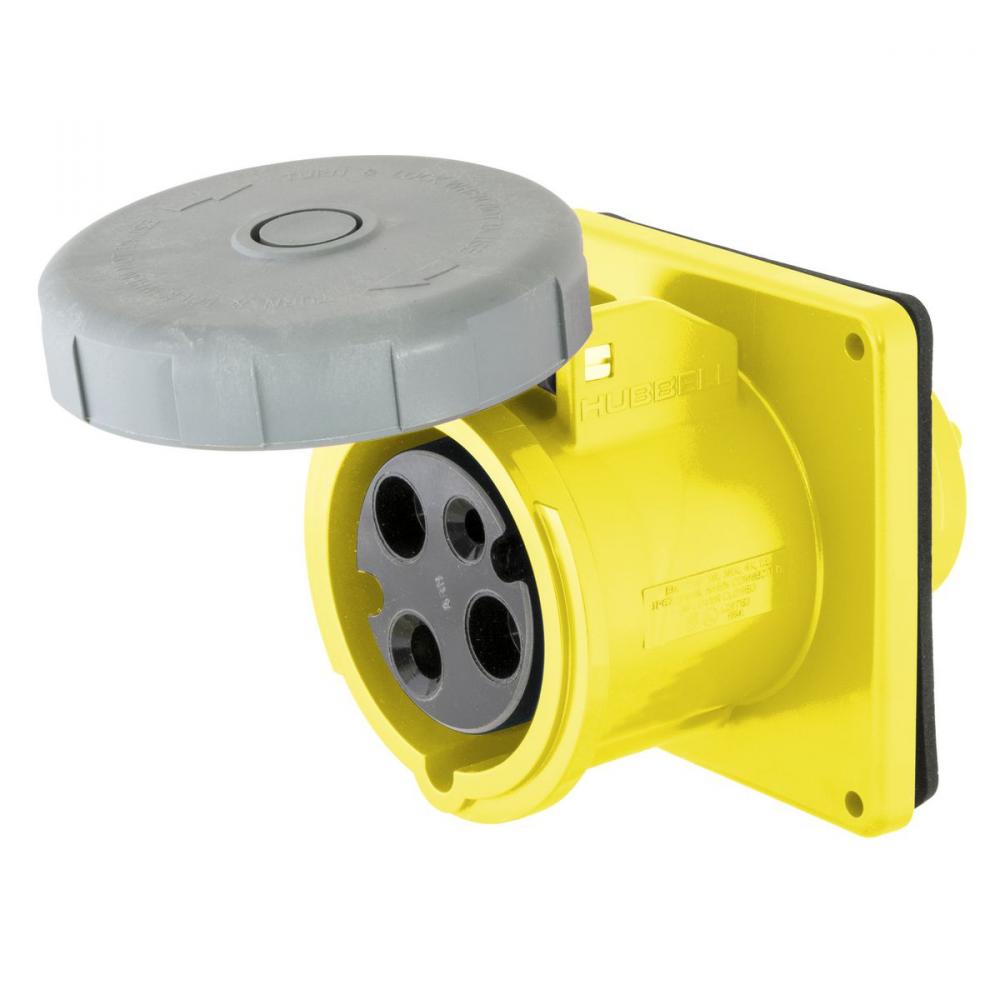

Heavy Duty IEC Pin and Sleeve Industrial Grade Female Receptacle, 100A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
100
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Pressure Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
Listed To Standard UL1682
Sub Brand:
IEC 309 Pin and Sleeve Devices
Tech Drawing Link:
Type:
Watertight Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
12,500
Weight:
3.800 L
Wire Size:
#3 AWG to #1/0 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
