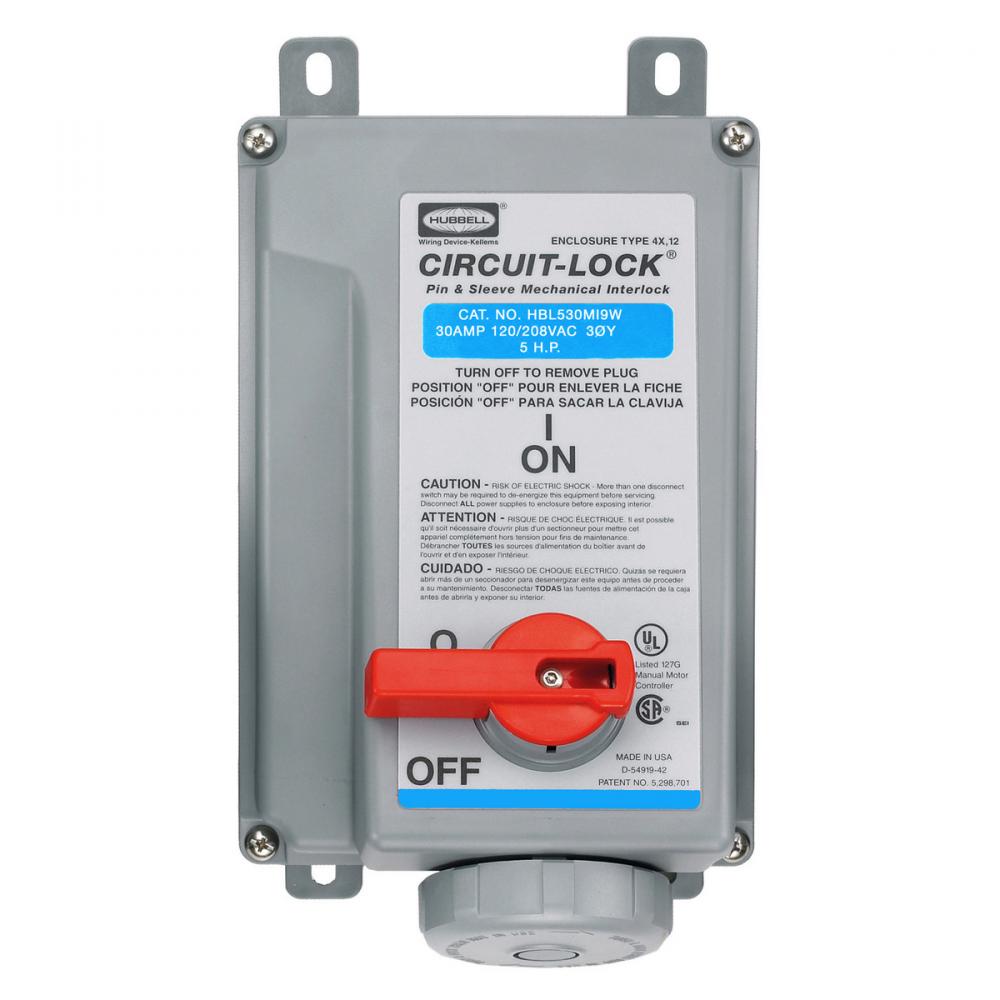

PS, IEC, MECHINT, 4P5W,30A 120/208V,W/T by Hubbell Wiring Device-Kellems
- Part Number: HBL530MI9W
- UPC: 00783585406145
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Wye 120/208V AC , 4-Pole 5-Wire Grounding, Terminal Screws
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Blue
Connection:
Pressure Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
UL Listed
Sub Brand:
IEC 309 Pin and Sleeve Devices
Type:
Mechanical Interlock
UNSPSC:
39121406
Voltage Rating:
3 Phase Y 120/208
Warranty Link:
Wattage:
6,240
Weight:
6.400 L
Wire Size:
#12 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
