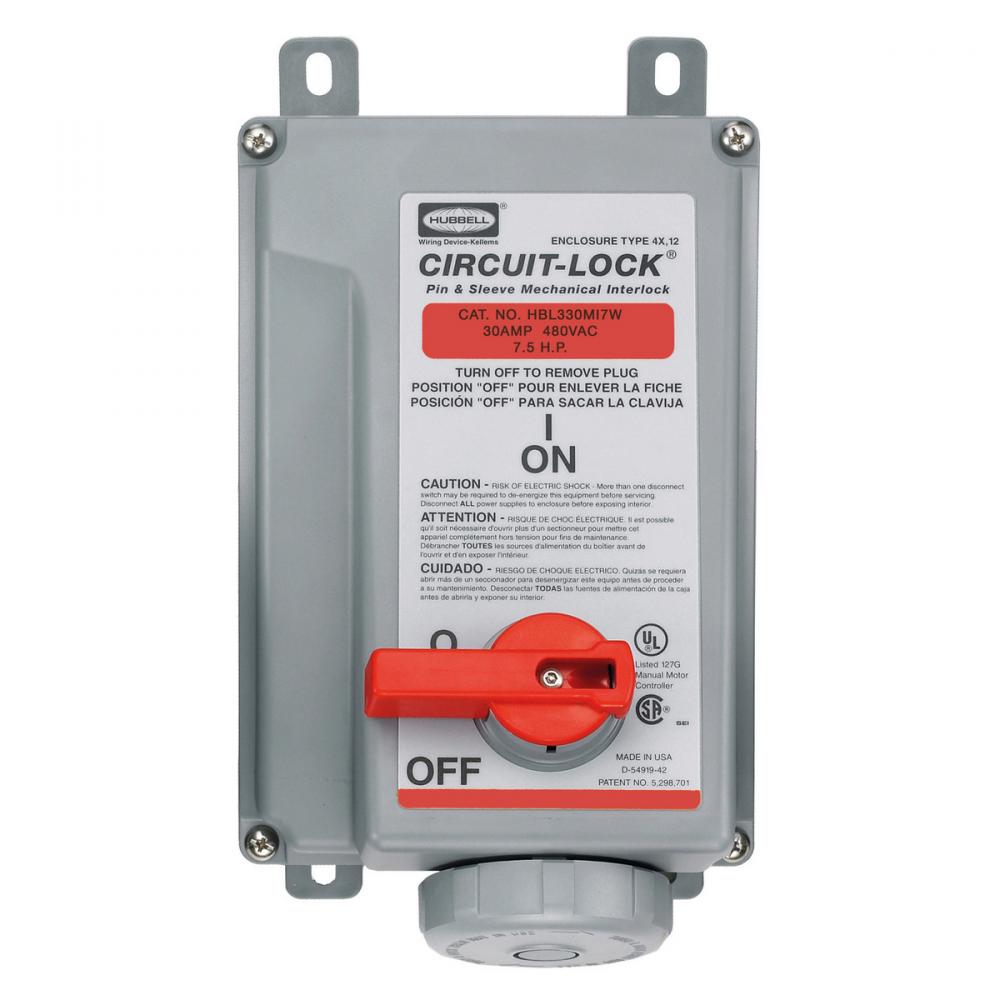

PS, IEC, MECHINT, 2P3W, 30A 480V, W/T by Hubbell Wiring Device-Kellems
- Part Number: HBL330MI7W
- UPC: 00783585405834
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 480V AC, 2-Pole 3- Wire Grounding, Terminal Screws, Red, Watertight
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Connection:
Pressure Screw Terminals
Country Of Origin:
PL
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
UL Listed
Sub Brand:
IEC 309 Pin and Sleeve Devices
Type:
Mechanical Interlock
UNSPSC:
39121406
Voltage Rating:
480
Warranty Link:
Wattage:
14,400
Weight:
6.150 L
Wire Size:
#12 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
