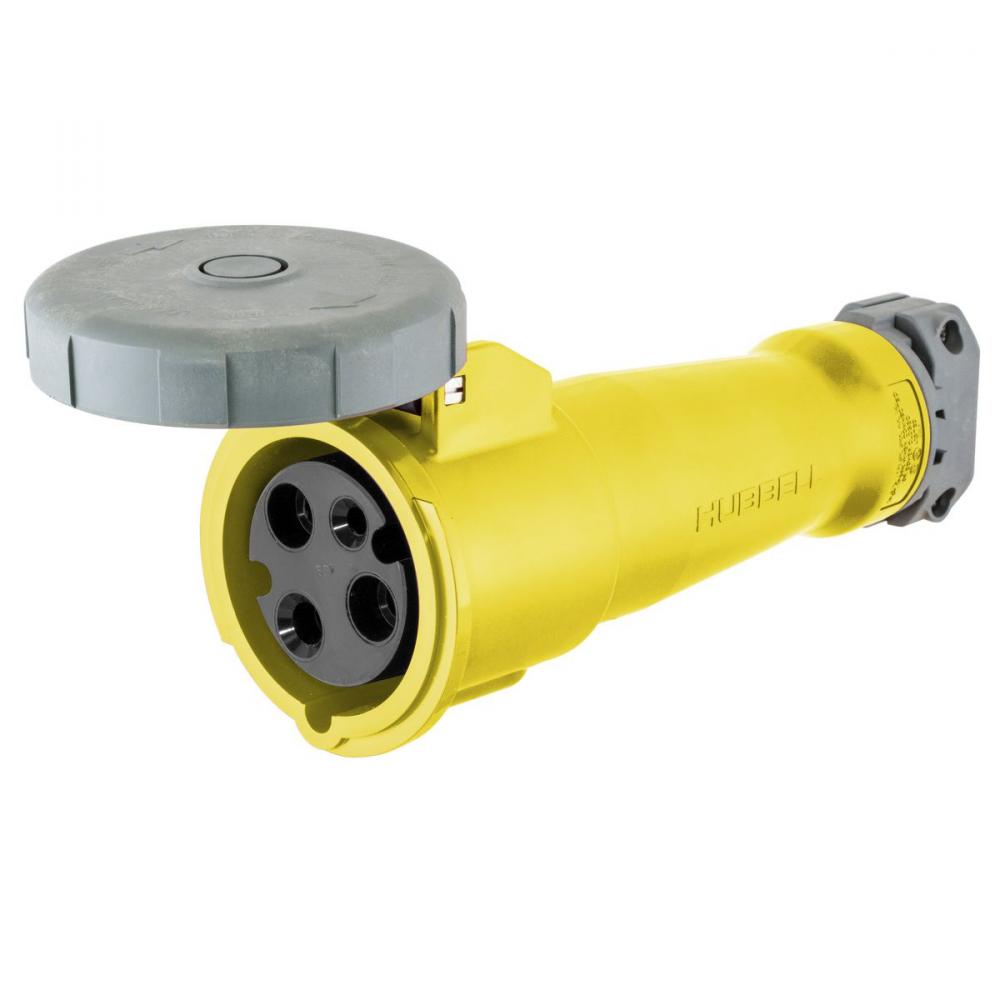

PS, IEC, CONN, 2P3W, 100A 125V,4X/69K by Hubbell Wiring Device-Kellems
- Part Number: HBL3100C4W
- UPC: 00783585403038
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview
Heavy Duty IEC Pin and Sleeve Industrial Grade Female Connector Body, 100A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
100
Application:
High Ampacity Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#3 AWG to #1/0 AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
Sub Brand:
Pin and Sleeve
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Watertight Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
4.650 L
Manufactured By:
Hubbell Wiring Device-Kellems
