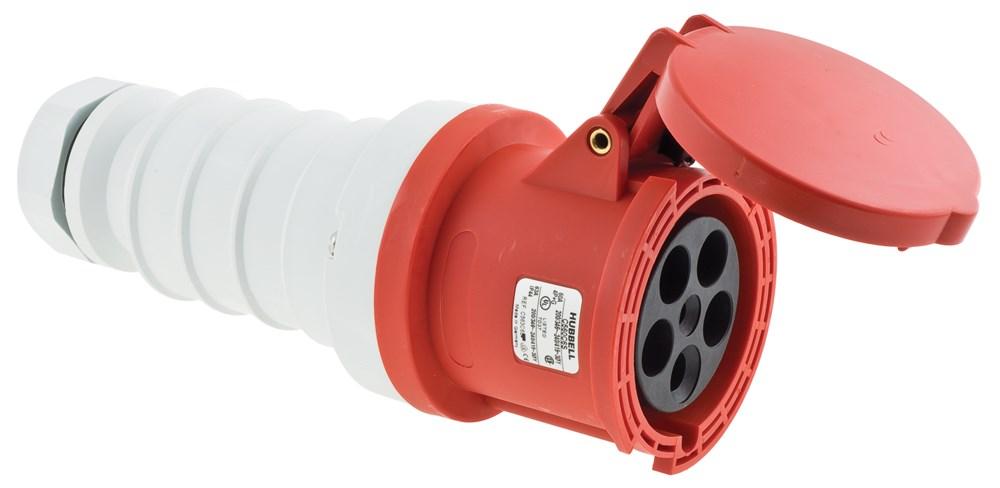

PS, C-IEC, CONN, 4P5W, 60A 200-415V, S/P by Hubbell Wiring Device-Kellems
- Part Number: C560C6S
- UPC: 00783585313504
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, C Series Industrial Grade Connector Body, 60A 200/346-220/415V,4-Pole 5-Wire Grounding, Screw Terminals, Red, C-Series
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Electrical Subtype:
Electrical Connector Assembly
Voltage Rating:
3-Phase 200-415 AC
Amperage Rating:
60 North mericn
Application:
High Ampacity Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Conductor Range:
#8AWG to #2AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
DE
Environmental Conditions:
Water Tight
Insulation:
Insulated Body
Length:
10.6000 in
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
5-Wire Grounding
Number Of Poles:
4-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Water-Tight
Standard:
UL 498, IEC 309-1 and 309-2
Stock Type:
Shelf Stock
Sub Brand:
IEC 309 Pin and Sleeve Devices, C-Series
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Standard
UNSPSC:
39121421
Weight:
1.800 L
Manufactured By:
Hubbell Wiring Device-Kellems
