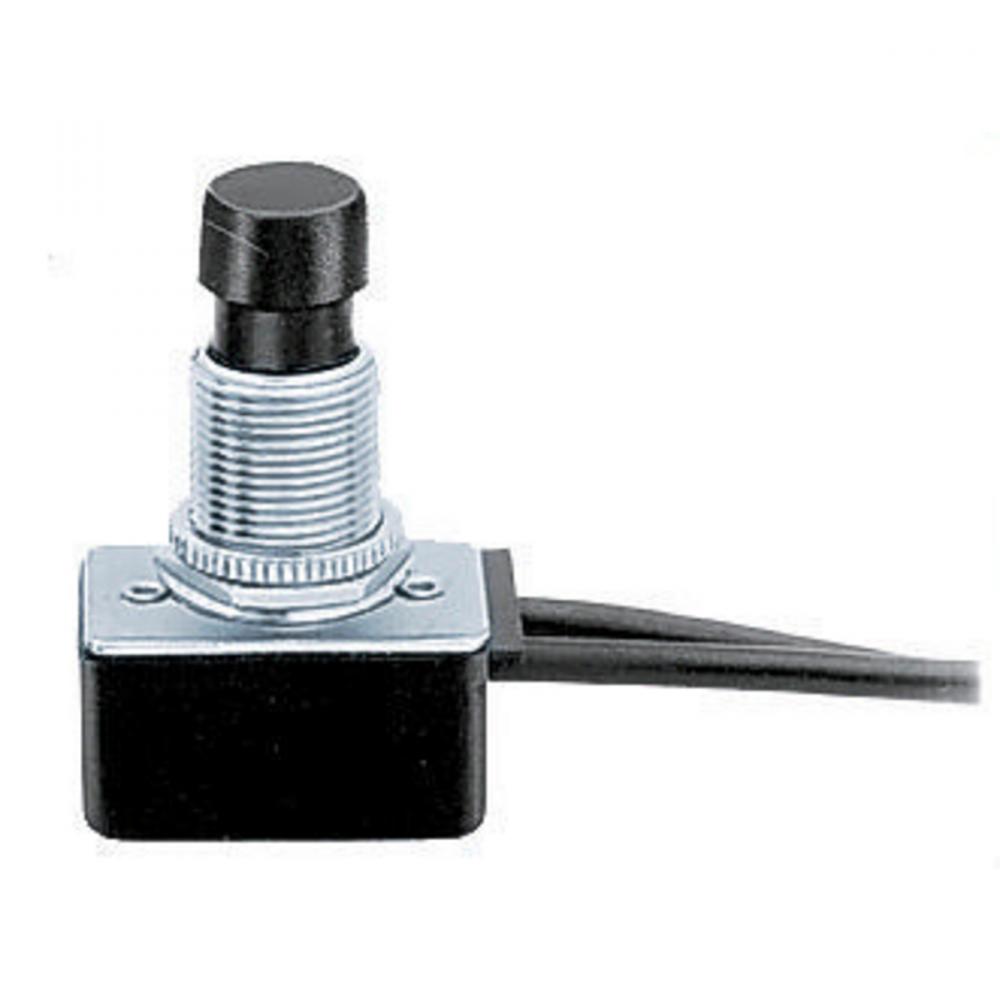

PANEL SW, SPST, PUSH W/LEADS by Hubbell Wiring Device-Kellems
- Part Number: HBL11PBWL
- UPC: 00783585016696
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Push Button Switches, Single Pole Single Throw 4A 250V/8A 125V, Wire Leads, Black
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Actuator:
Push Button
Amperage Rating:
4/8/10
Application:
On/Off
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Connection:
Wire Leads
Contact Configuration:
Two Position
Contact Rating:
As Indicated
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Indicator:
None
Interrupt Rating:
4A 250V AC, 8A 125V, 10A 120V AC
Line Drawing Link:
Material:
Non-Metallic Button
Mounting:
Panel Mount
Number Of Poles:
Single Pole
Operating Cycles:
Not Rated
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
1.5 in x 0.98 in x 0.64 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
Panel Mount Switches
Tech Drawing Link:
Type:
General Purpose
UNSPSC:
39122239
Voltage Rating:
250/125/120
Warranty Link:
Wattage:
1000
Weight:
.050 L
Manufactured By:
Hubbell Wiring Device-Kellems
