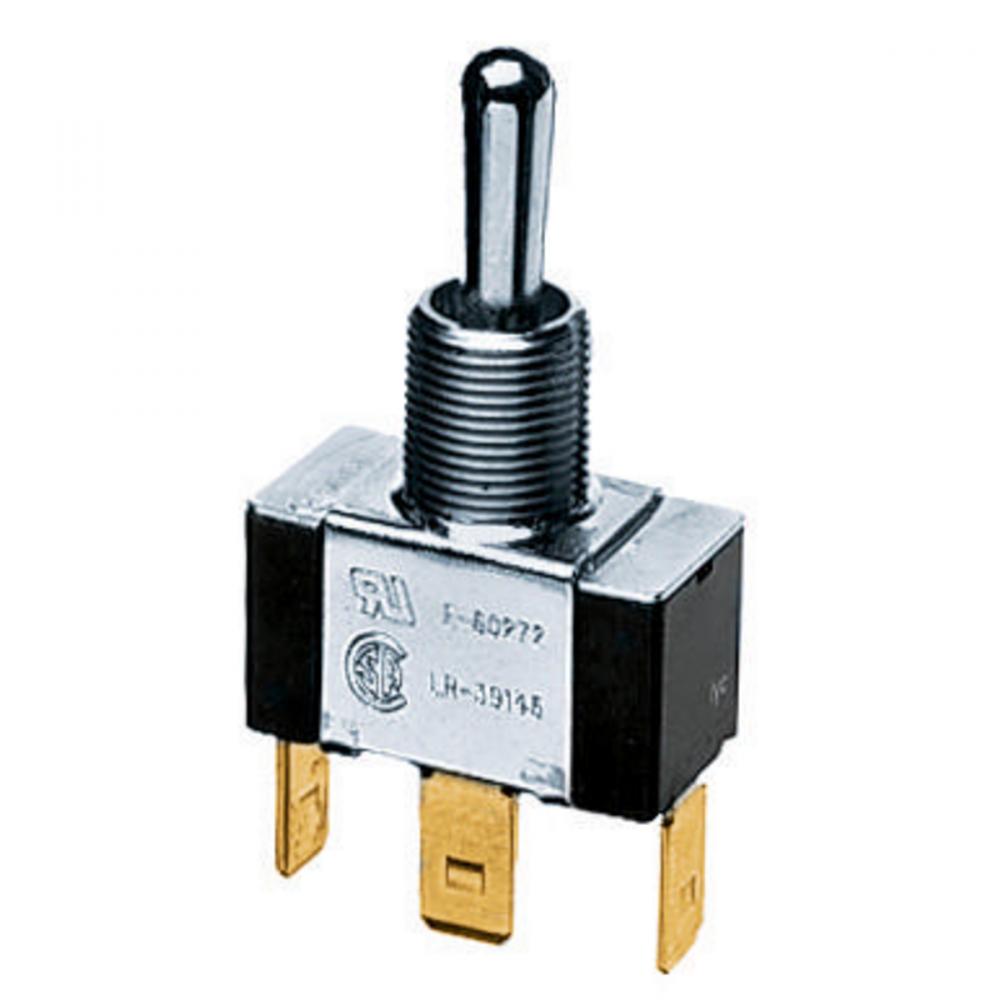

PANEL SW, SPDT, MOMENTARY, SPADE TERM by Hubbell Wiring Device-Kellems
- Part Number: HBL123SPMM
- UPC: 00783585016795
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Momentary Single Pole Double Throw Center Off, 10A 250V/10A
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Actuator:
Togle
Amperage Rating:
10/20
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Connection:
Contacts
Contact Configuration:
Momentary
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Plug in
Number Of Poles:
Single Pole
Operating Cycles:
Not Rated
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.15 in x 0.56 in x 1.12 in
Spec Sheet:
Special Features:
3-Position, Center Off Momentary
Standard:
UL Listed
Sub Brand:
Switches
Tech Drawing Link:
Type:
Momentary
UNSPSC:
39122239
Voltage Rating:
250/125
Warranty Link:
Weight:
.100 L
Manufactured By:
Hubbell Wiring Device-Kellems
