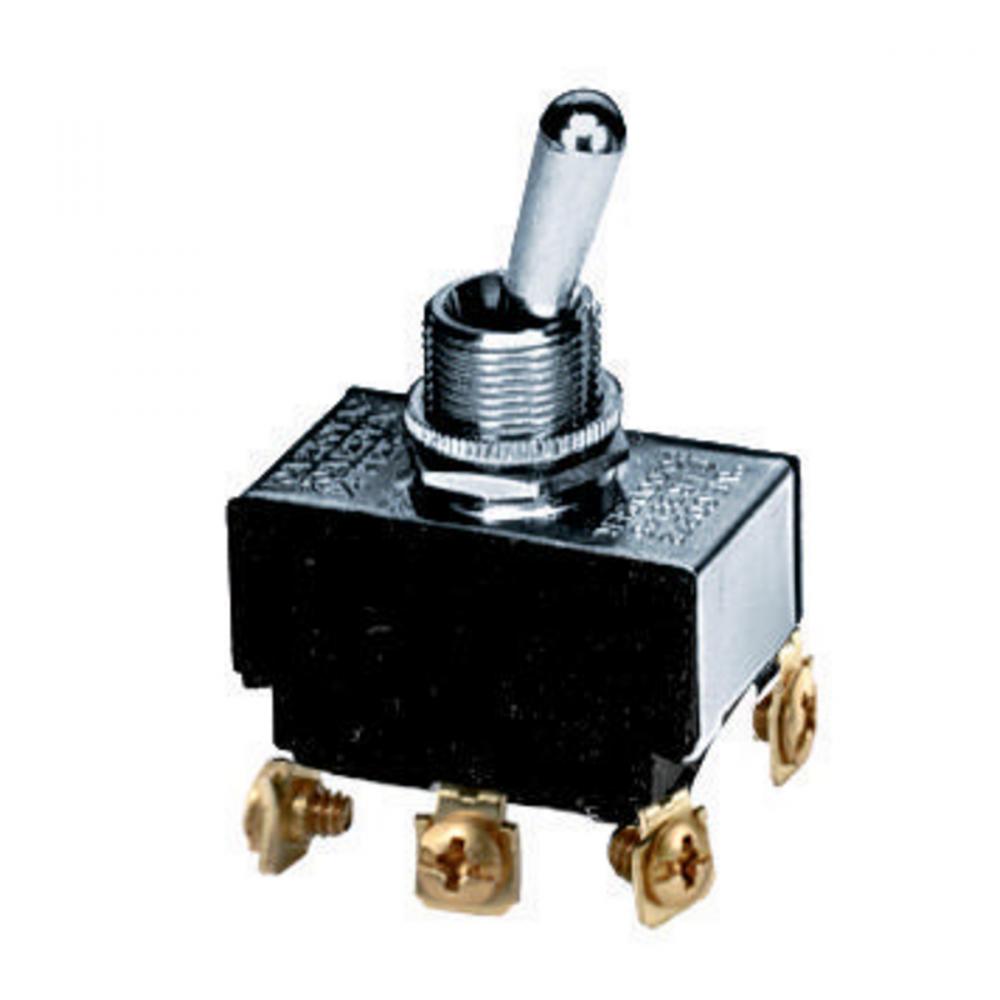

PANEL SW, DPDT, SPADE TERM by Hubbell Wiring Device-Kellems
- Part Number: HBL22SP
- UPC: 00783585017129
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Double Pole Double Throw 10A 250V/10A 125V, Spade Terminals,
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Actuator:
Bat Handle
Amperage Rating:
10/20
Application:
2-Circuit On/Off
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Connection:
Spade Terminal
Contact Configuration:
Three Position
Contact Rating:
As Indicated
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Indicator:
Comes with Indicator Plate
Interrupt Rating:
10A 250V AC, 20A 125V AC
Line Drawing Link:
Material:
Metallic Handle
Mounting:
Panel Mount
Number Of Poles:
Double Pole
Operating Cycles:
Not Rated
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.3 in x 0.76 in x 1.3 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
Panel Mount Switches
Tech Drawing Link:
Type:
General Purpose
UNSPSC:
39122239
Voltage Rating:
250/125
Warranty Link:
Wattage:
2500
Weight:
.100 L
Manufactured By:
Hubbell Wiring Device-Kellems
