NONSTOCK by Hubbell Wiring Device-Kellems
- Part Number: IG5352ITR
- UPC: 00783585540054
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

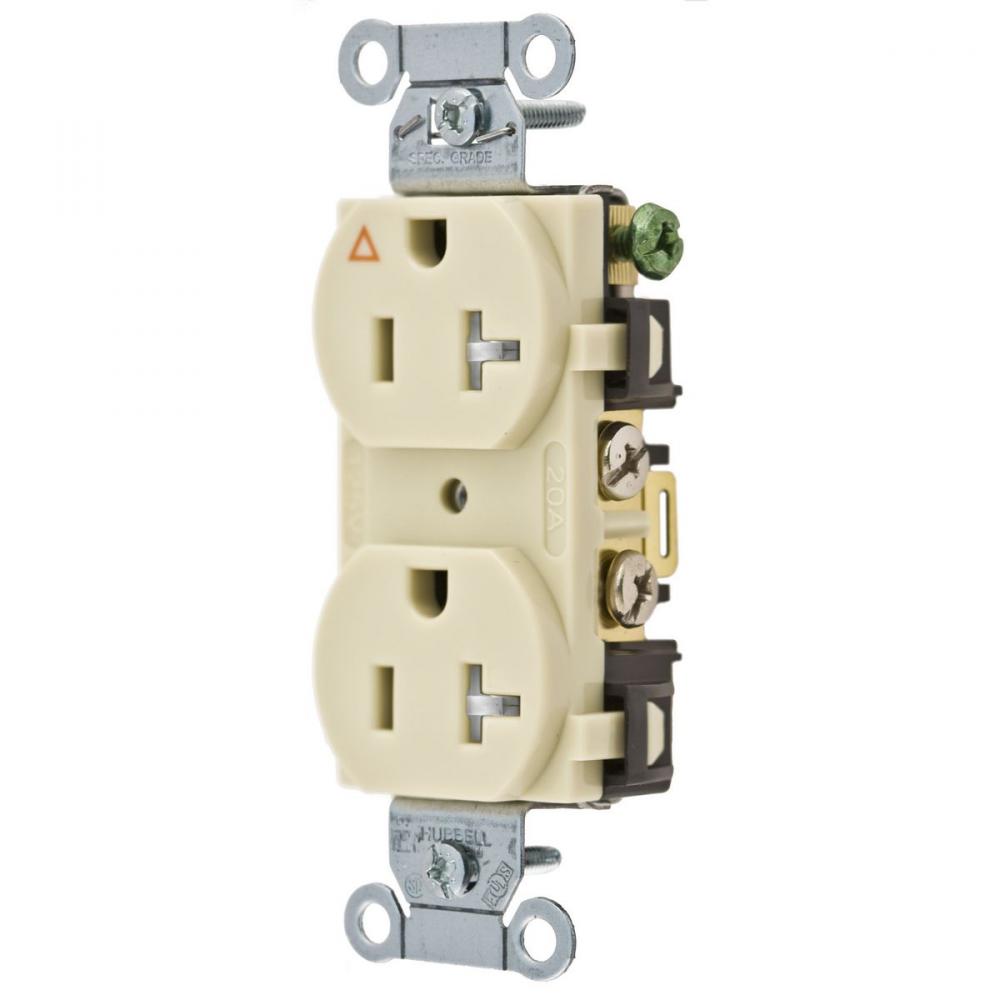

HWS IG5352ITR ISOLATED GROUND RECP 20A IVORY TAMPER RES
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Hubbell-Pro Heavy Duty Specification Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Ivory
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
CN
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
3.28 in x 1.57 in x 1.07 in
Spec Sheet:
Special Features:
Isolated Ground and Tamper Resistant
Standard:
Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade Devices
Type:
Isolated Ground
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.200 L
Wire Size:
#12 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
