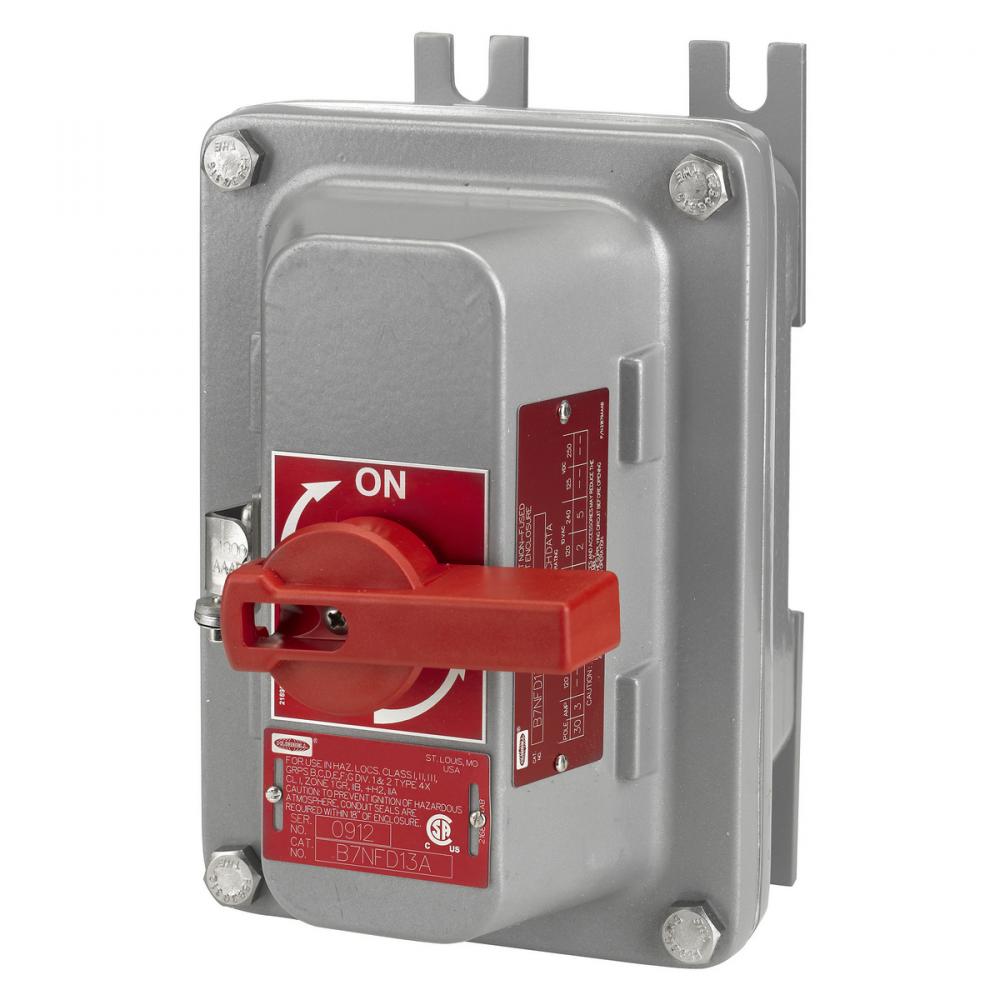

NONFUSED HAZ LOC DISC 30A 3P 600V W/AUX by Hubbell Wiring Device-Kellems
- Part Number: HBLB7NFD13AA
- UPC: 00783585242620
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Disconnect Switches, Non Fused, Hazardous Location, 30A 600V AC, 3-Pole with Aux Contact
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Snap
Actuator:
Lever
Amperage Rating:
30
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Connection:
Terminal Screws
Contact Configuration:
Two Position
Contact Rating:
30A
Country Of Origin:
US
Enclosure:
Metallic
Environmental Conditions:
Indoors or Outdoors or Hazardous Atmosphere
Frequency Rating:
60Hz
Installation Link:
Material:
Aluminum, Copper Free (less than 4/10 of 1%)
Mounting:
Mounting Feet
Number Of Poles:
Three Pole
Operating Cycles:
6,000 Cycles
Operating Temperature:
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
8.13 in x 5.75 in x 6.31 in
Spec Sheet:
Special Features:
Hazardous Locations, With Aux Contact
Standard:
UL98 Certified
Sub Brand:
Circuit-Lock
Type:
Switch with Aux Contact
UNSPSC:
39122205
Voltage Rating:
600
Warranty Link:
Wattage:
18000
Weight:
11.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
