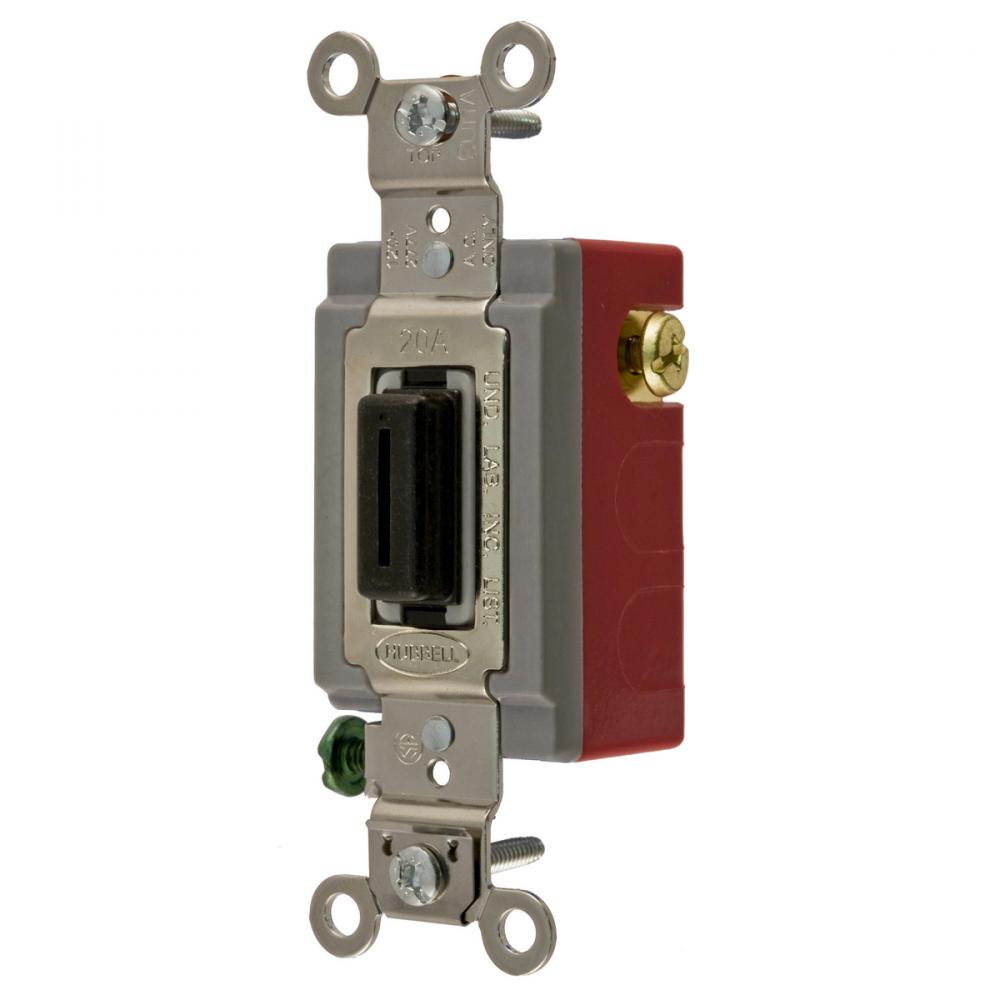

MOM TOG, 20A, 120/277V, SPDT, LOCK by Hubbell Wiring Device-Kellems
- Part Number: HBL1557L
- UPC: 00783585432885
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Switches and Lighting Controls, Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off , 20A 120/277V AC, Terminal Screws Black Key Guide
Specifications
Details
Category:
Lighting Controls
Action:
SPDT
Actuator:
Double Ended Key
Amperage Rating:
20
Application:
Back and Side Wired
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Terminal Screws
Contact Configuration:
Momentary
Contact Rating:
Full Rated
Country Of Origin:
CN
Enclosure:
None
Indicator:
Dot Indicates On
Installation Link:
Line Drawing Link:
Load:
Inductive or Resistive
Lock Type:
Non-Cylindrical
Material:
Composite
Mounting:
Mounting Screws
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
4.06 in x 1.31 in x 1.89 in
Spec Sheet:
Special Features:
Momentary Contact
Standard:
UL Listed
Sub Brand:
AC Toggle Switches
Tech Drawing Link:
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Locking
UNSPSC:
39122224
Voltage Rating:
120-277
Warranty Link:
Wattage:
5540
Weight:
.075 L
Manufactured By:
Hubbell Wiring Device-Kellems
