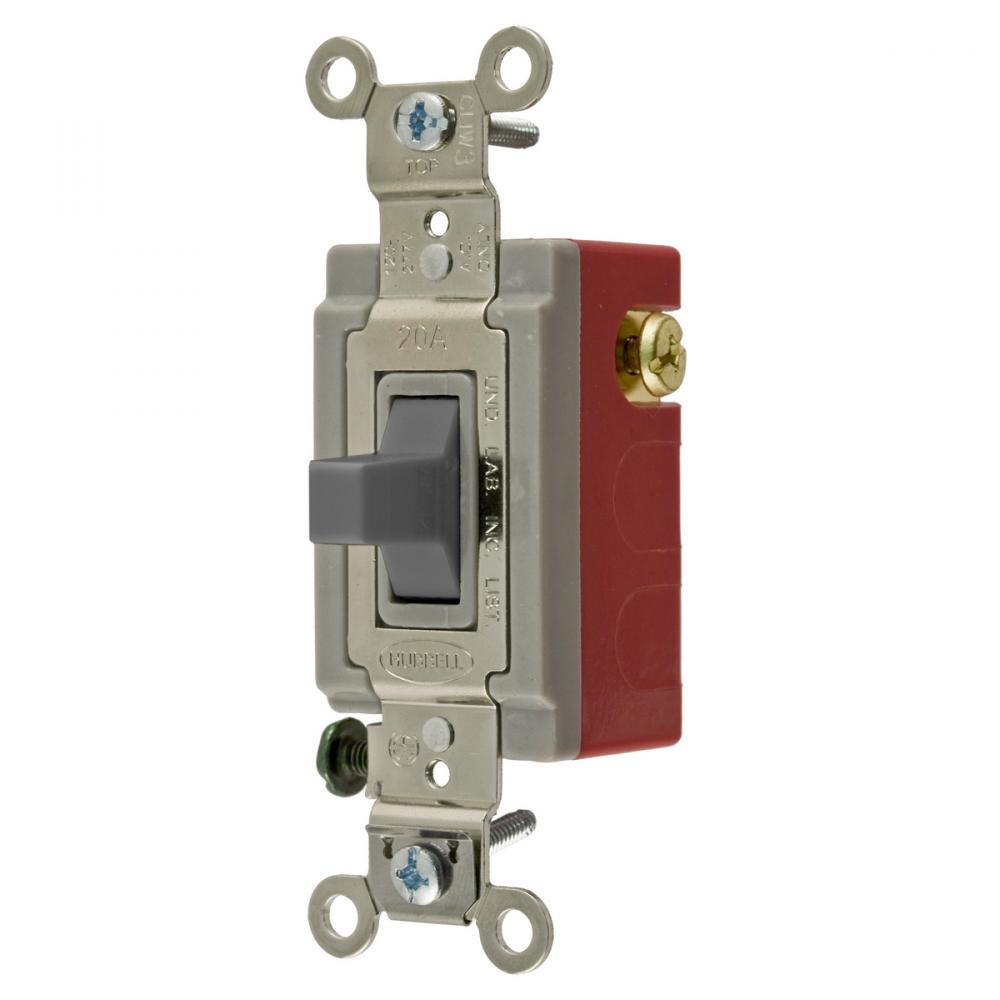

MOM TOG, 20A, 120/277V, SPDT, GY by Hubbell Wiring Device-Kellems
- Part Number: HBL1557GY
- UPC: 00783585432847
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws, Gray Toggle
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
SPDT
Actuator:
Toggle
Amperage Rating:
20
Application:
Back and Side Wired
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Back and Side Wired
Contact Configuration:
Momentary
Contact Rating:
Per UL 20
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
None
Line Drawing Link:
Mounting:
Screw Mount
Number Of Poles:
Single Pole
Operating Cycles:
50,000 Cycles
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
4.06 in x 1.31 in x 1.89 in
Spec Sheet:
Special Features:
Momentary Contact
Standard:
UL Listed
Sub Brand:
AC Toggle Switches
Tech Drawing Link:
Type:
Toggle
UNSPSC:
39122211
Voltage Rating:
120-277
Warranty Link:
Wattage:
5540
Weight:
.200 L
Manufactured By:
Hubbell Wiring Device-Kellems
