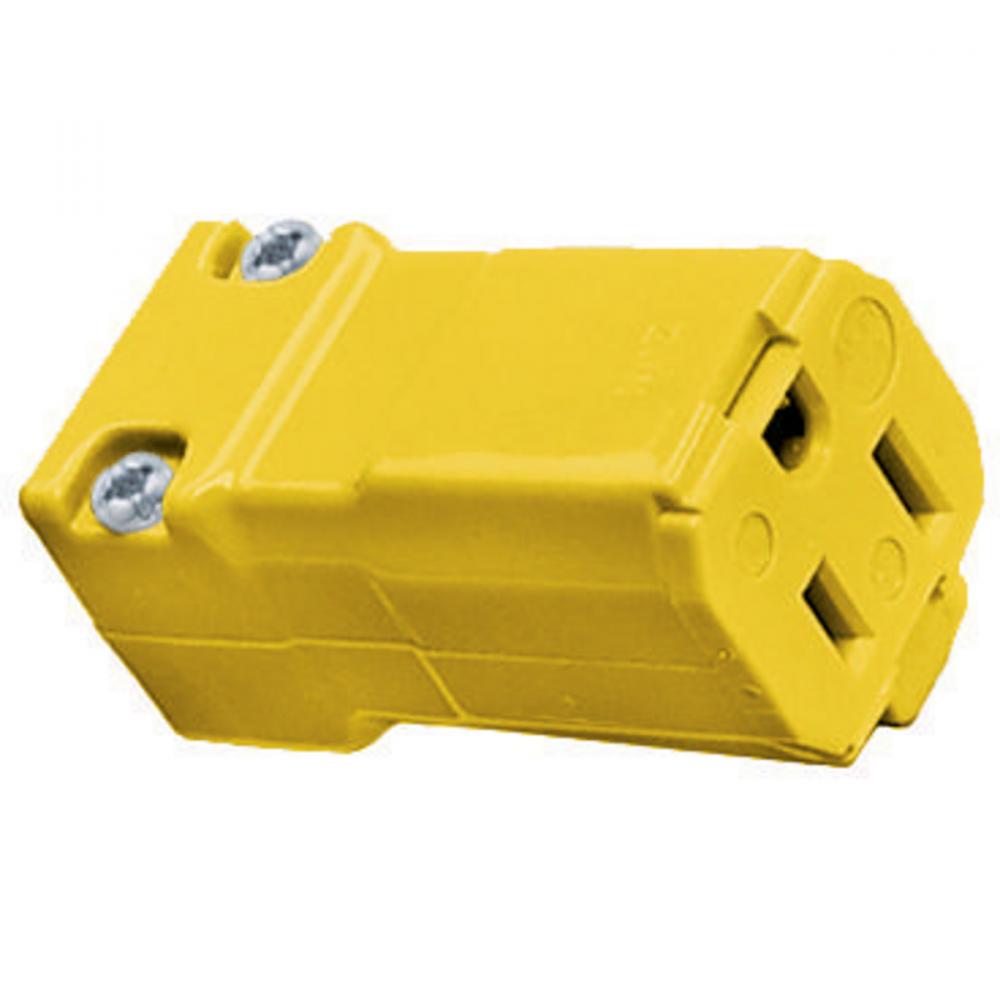

MARINE VAL CONN, 15A 125V, 5-15R, YL by Hubbell Wiring Device-Kellems
- Part Number: HBL52CM69V
- UPC: 00783585808291
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding , 15A 125V, 5-15R, Yellow, Single Pack
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Marine Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#14 AWG to #12 AWG
Connection:
Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
5-15R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
UL Listed
Sub Brand:
Straight Blade
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Valise
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
