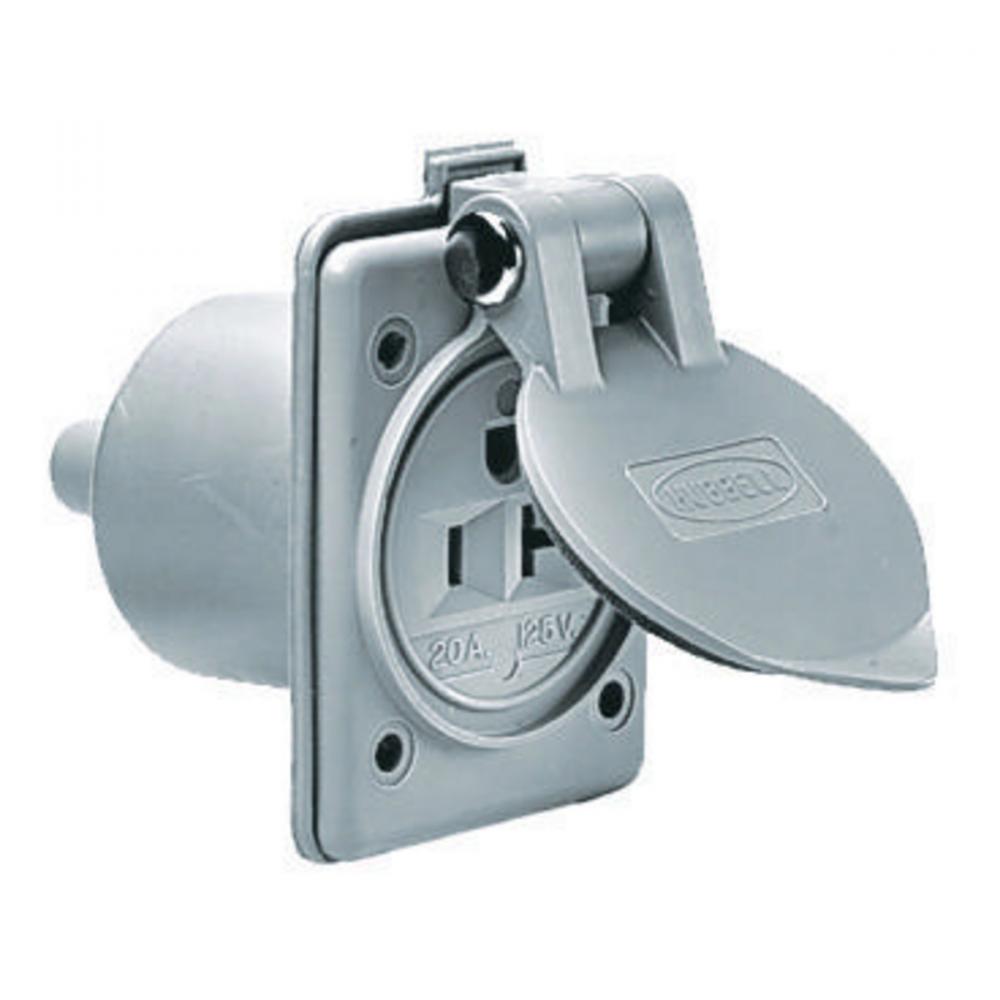

MARINE HULL OUTLET, 20A 125V, 5-20R, GY by Hubbell Wiring Device-Kellems
- Part Number: HBL61CM65
- UPC: 00783585808673
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Outlet, Flanged, Marine, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray, Single Pack.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
2.68 in x 2.25 in x 2.68 in
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
Sub Brand:
Straight Blade Devices
Type:
Flanged Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.155 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
