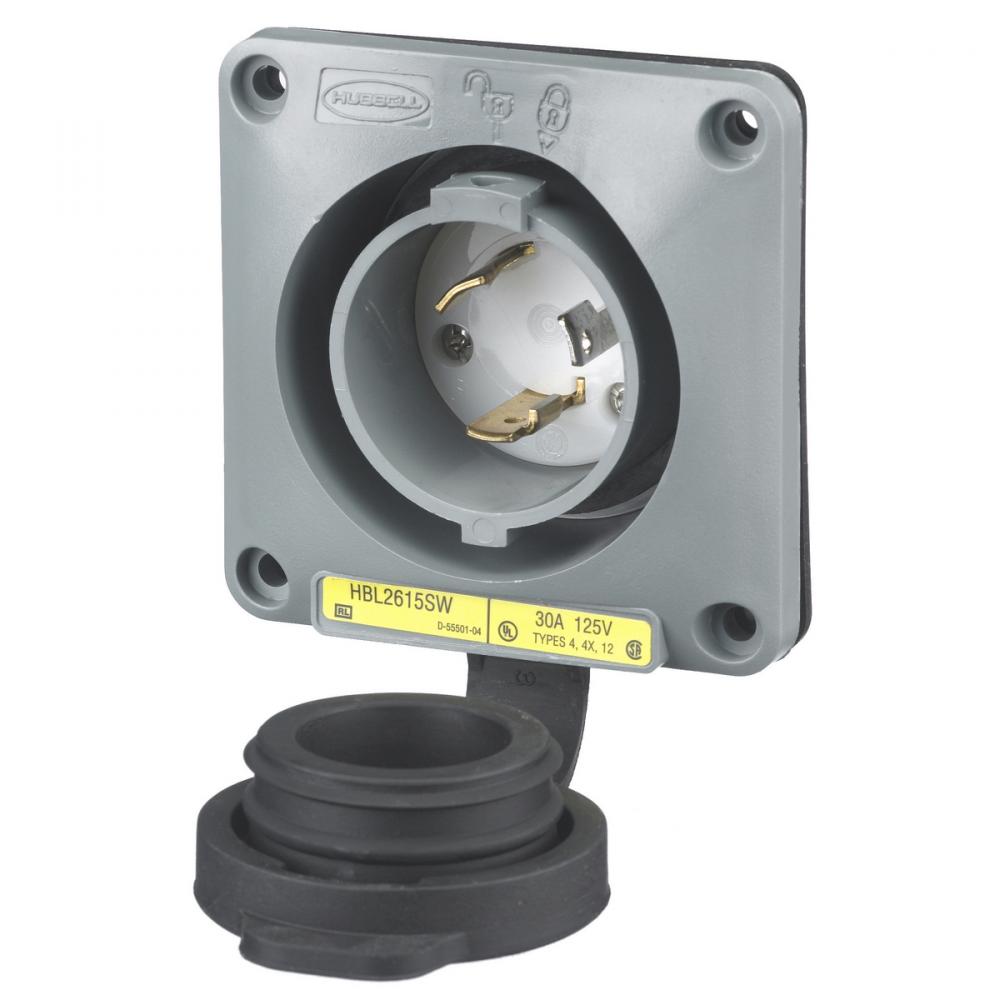

LKG WT S/SHRD FLG-INLT, 30A 125V, L5-30P by Hubbell Wiring Device-Kellems
- Part Number: HBL2615SW
- UPC: 00783585231648
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Gray.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L5-30P
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.75 in x 3.75 in x 2.27 in
Spec Sheet:
Special Features:
Shrouded Watertight Construction
Standard:
UL Listed, CSA Certified To Type 4, 4X And Type 12
Sub Brand:
Twist-Lock Devices
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
3,750
Weight:
.550 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
