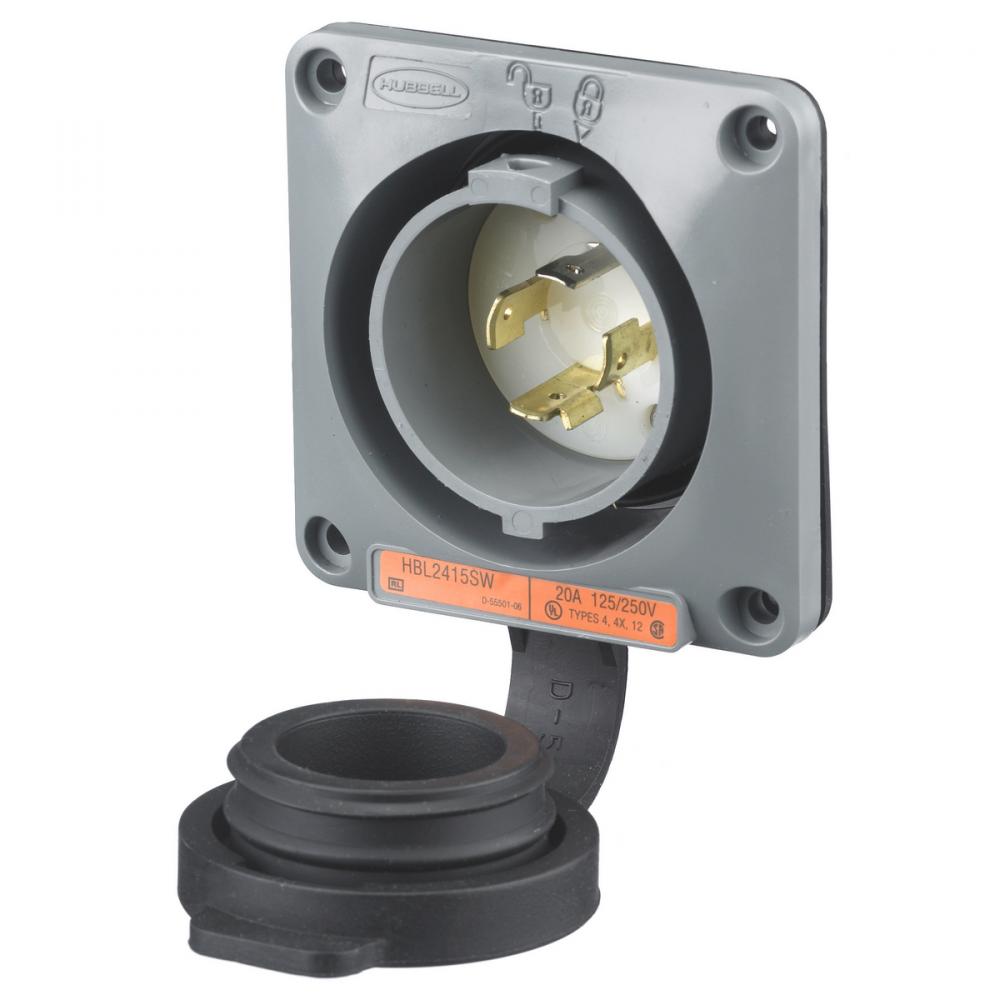

LKG WT S/SHRD FL-INLT,20A125/250V,L5-20P by Hubbell Wiring Device-Kellems
- Part Number: HBL2415SW
- UPC: 00783585231327
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 20A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-20P, Screw Terminal, Gray.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray, White
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L14-20P
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.75 in x 3.75 in x 2.44 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed, CSA Certified To Type 4, 4X And Type 12
Sub Brand:
Twist-Lock Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
5,000
Weight:
.600 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
