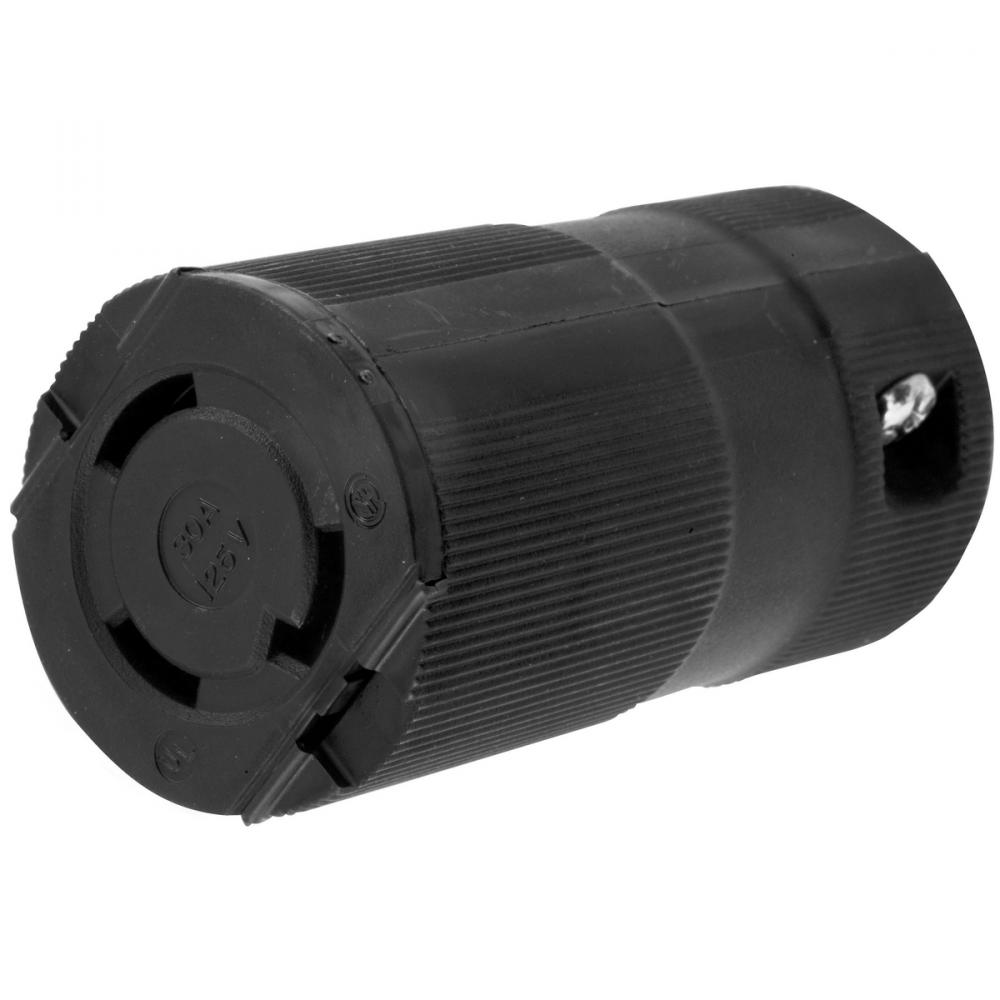

LKG VAL CONN, 30A 125V, L5-30R, BK by Hubbell Wiring Device-Kellems
- Part Number: HBL2613VBK
- UPC: 00783585043142
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Twist-Lock® Valise®, Female Connector Body, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5,Screw Terminal Nylon
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#12AWG to #8AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L5-30R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
1.78 in x 1.78 in x 3.50 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.200 L
Manufactured By:
Hubbell Wiring Device-Kellems
