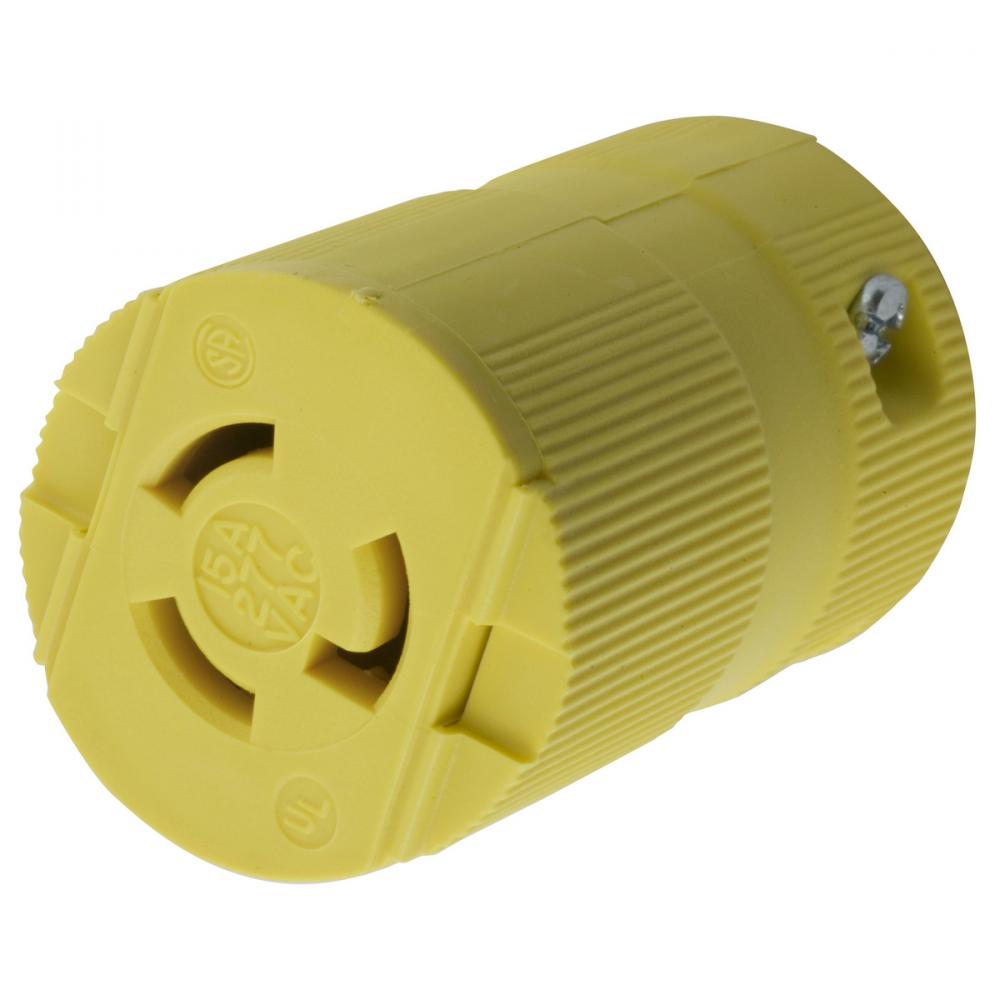

LKG VAL CONN, 15A 277V, L7-15R, VAL, YL by Hubbell Wiring Device-Kellems
- Part Number: HBL4779VY
- UPC: 00783585236964
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Twist-Lock® Valise®, Female Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal Nylon
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#14AWG to #12AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L7-15R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
1.50 in x 1.50 in x 2.78 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
277
Warranty Link:
Weight:
.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
