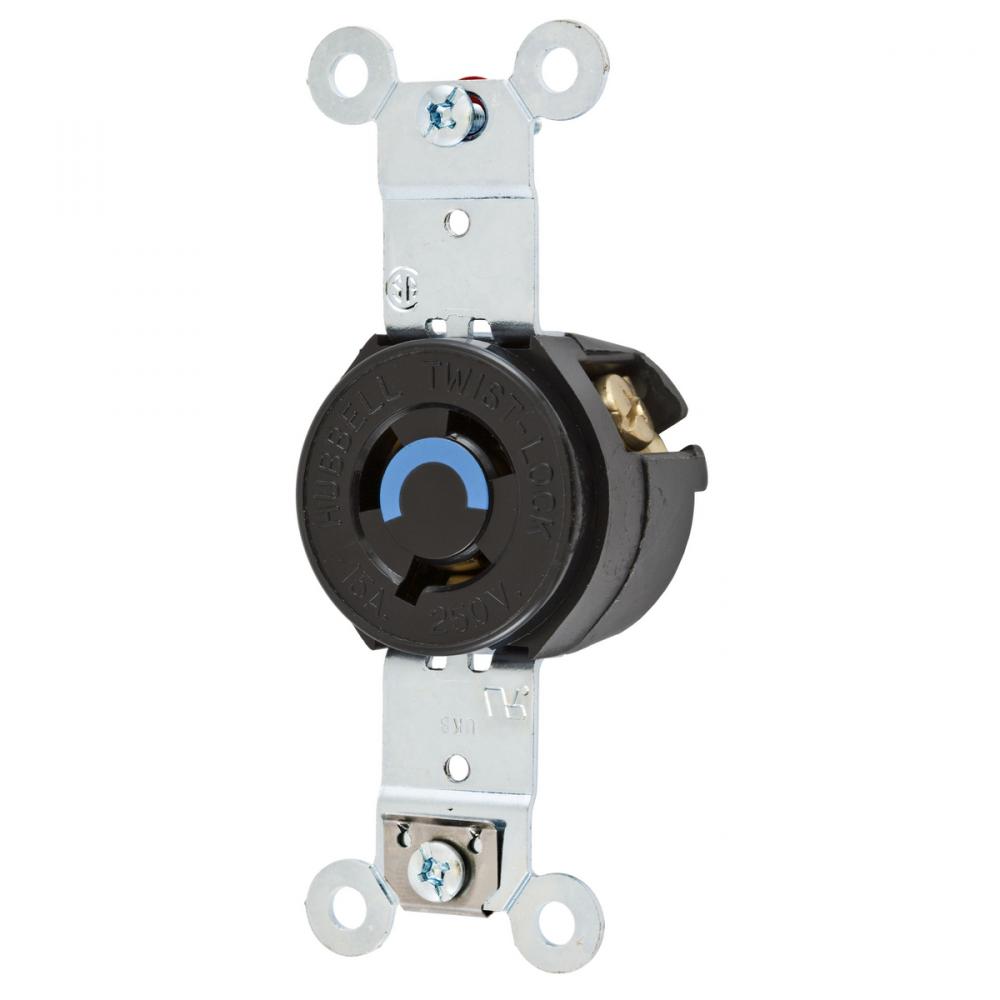

LKG SGL RCPT, RING-T 15A/250V,L6-15R, BK by Hubbell Wiring Device-Kellems
- Part Number: HBL4560RT
- UPC: 00783585318561
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Single Receptacle, 15A, 250V, 2 Pole, 3 Wire Grounding, NEMA L6-15R, Ring terminal connection
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Ring Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L6-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.28 in x 1.53 in x 1.26 in
Spec Sheet:
Special Features:
Ring Terminal Version
Standard:
Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
3,750
Weight:
.150 L
Wire Size:
#18 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
