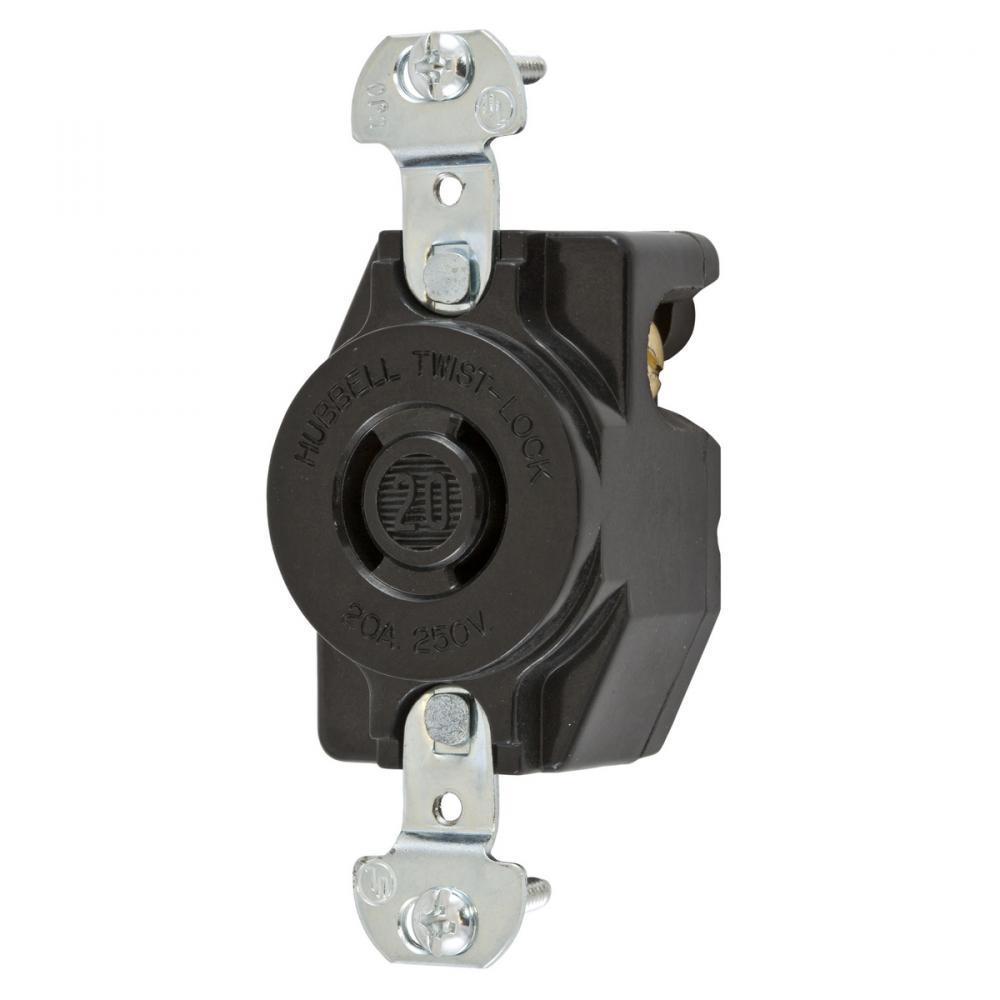

LKG SGL RCPT, 20A 250V, L2-20R, BK by Hubbell Wiring Device-Kellems
- Part Number: HBL7210B
- UPC: 00783585237107
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 250V, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black phenolic.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L2-20R
Number Of Poles:
2-Pole
Number Of Wires:
2-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.28 in x 1.40 in x 1.30 in
Spec Sheet:
Special Features:
Standard
Standard:
Fed.Spec.W-C-596
Sub Brand:
Twist-Lock Devices
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
5,000
Weight:
.200 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
