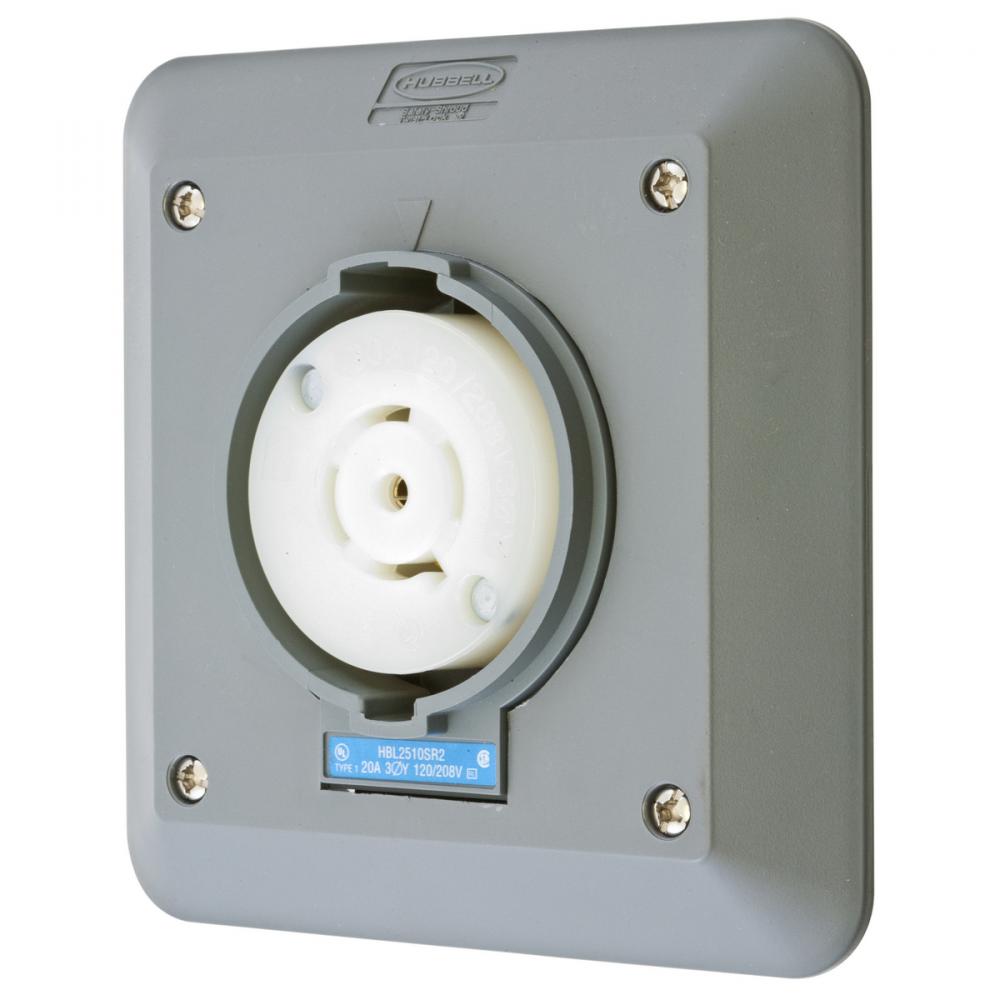

LKG S/SHRD RCPT, L21-20R, 2G SURF MT,GY by Hubbell Wiring Device-Kellems
- Part Number: HBL2510SR2
- UPC: 00783585235004
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Safety-Shroud® Receptacle, 20A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-20R, PBT housing semi-flush, two gang, Gray
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty Industrial Shrouded
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray, White
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Valox™
Mounting:
Screw Mount
NEMA Rating:
L21-20R
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3 Phase WYE
Size:
5.12 in x 5.12 in x 2.22 in
Spec Sheet:
Special Features:
2-Gang Surface Mount
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
120/208
Warranty Link:
Wattage:
4,160
Weight:
.650 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
