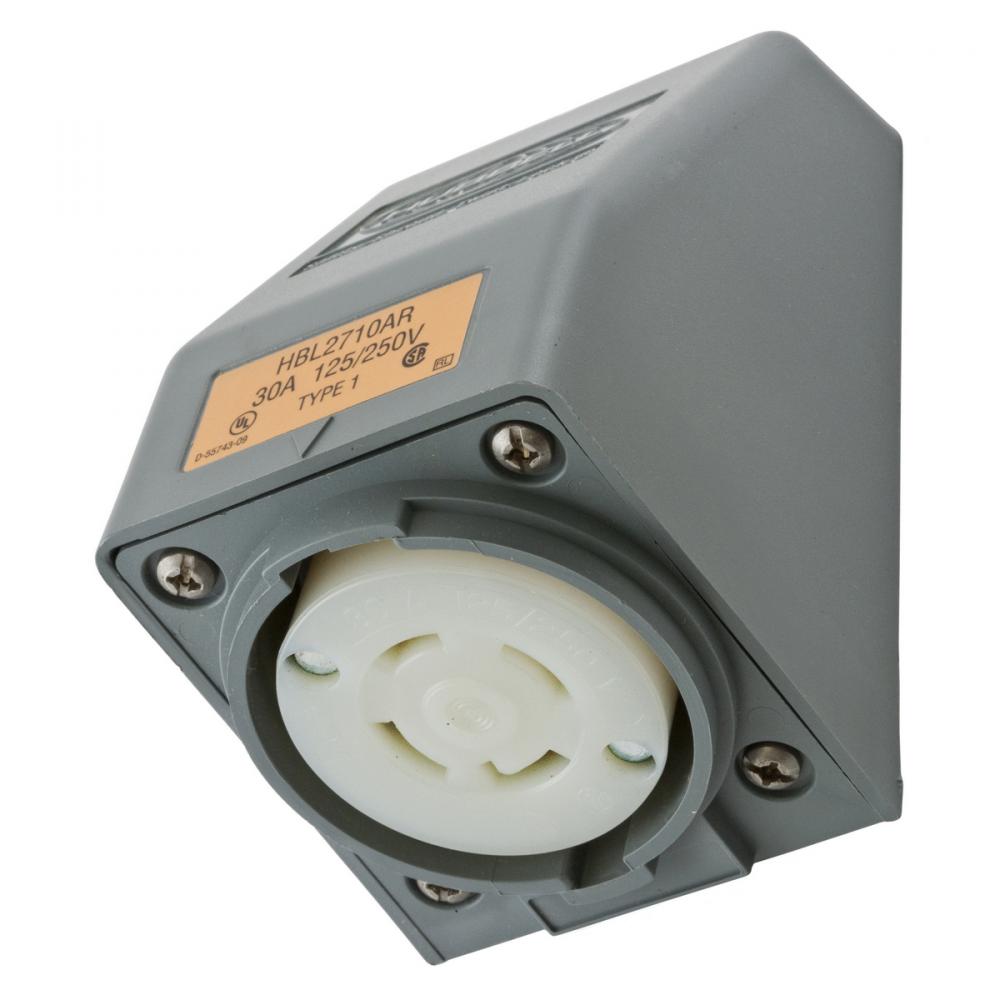

LKG S/SHRD RCPT, L14-30R, ANG SRF MT,GY by Hubbell Wiring Device-Kellems
- Part Number: HBL2710AR
- UPC: 00783585234649
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Safety-Shroud®, Angled Receptacle, One Gang, 30A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14- 30R, Screw Terminal, Gray.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty Industrial Shrouded
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray and White
Connection:
Screw Terminal
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Valox™
Mounting:
Screw Mount
NEMA Rating:
L14-30R
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
4.77 in x 2.85 in x 3.14 in
Spec Sheet:
Special Features:
Angled Housing
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
7,500
Weight:
.750 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
