LKG RCPT, IG, 30A 3PH250V, L15-30R, OR

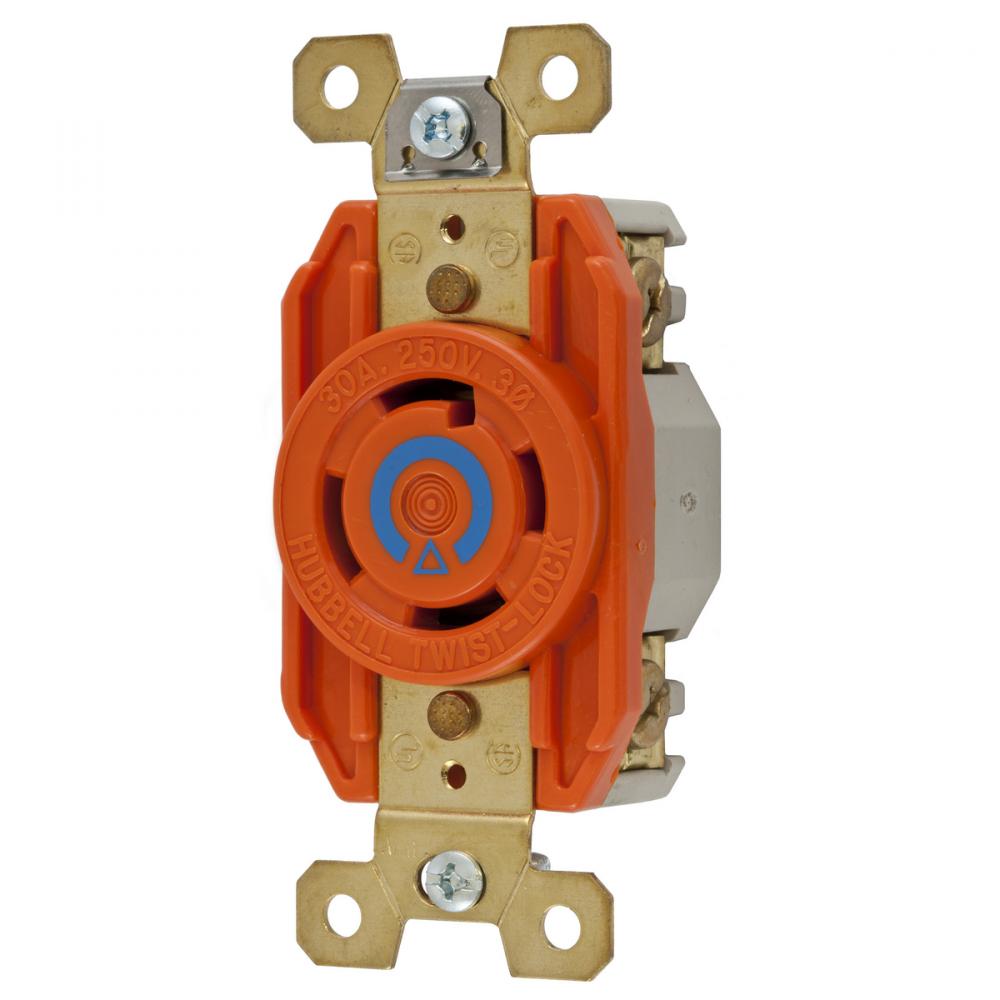

LKG RCPT, IG, 30A 3PH250V, L15-30R, OR by Hubbell Wiring Device-Kellems

  • Part Number: IG2720
  • UPC: 00783585872445
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Isolated Ground Industrial, Flush Receptacles, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw Terminal, Orange
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Orange
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L15-30R
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
3.28 in x 1.7 in x 1.23 in
Spec Sheet:
Special Features:
Isolated Ground
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
7,500
Weight:
.300 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
