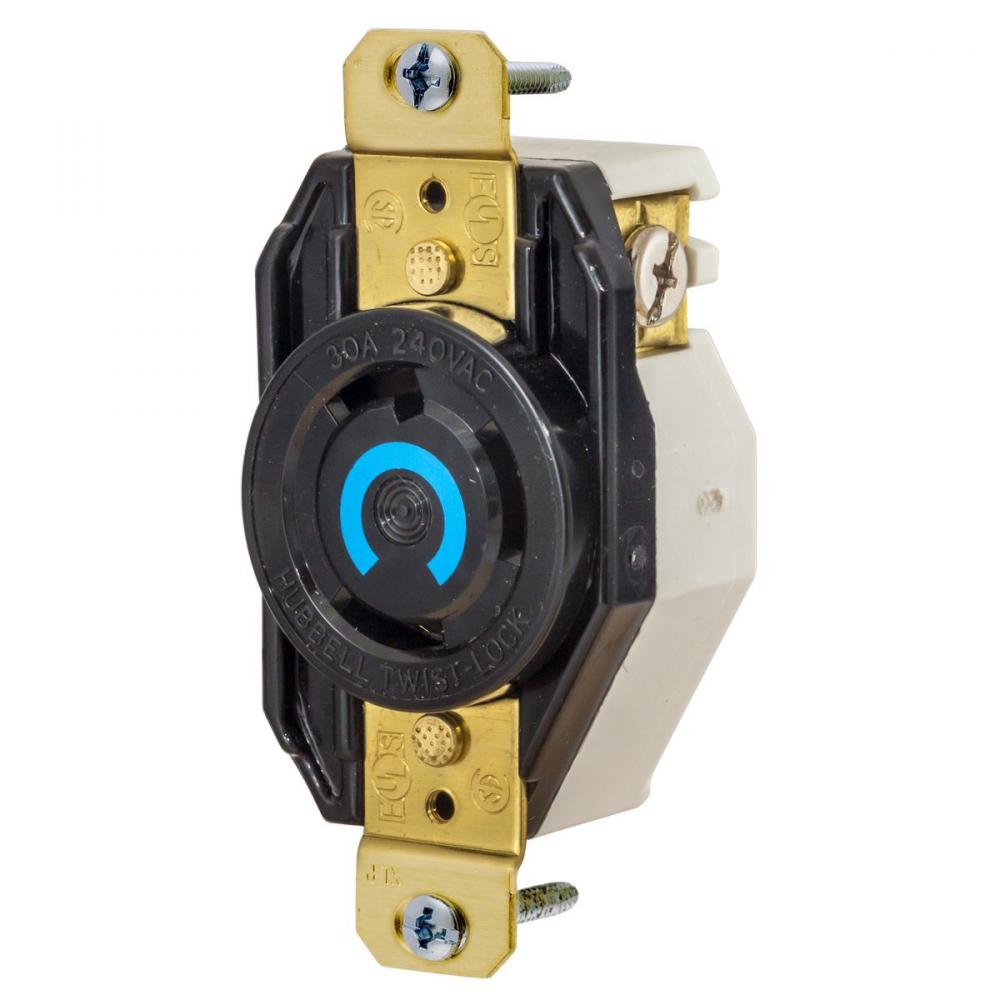

LKG RCPT, 30A 240V L-N, L25-30R, BK by Hubbell Wiring Device-Kellems
- Part Number: HBL2600
- UPC: 00783585580319
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Single Flush Receptacle, 30A, 2 Pole, 3 Wire, 240VAC, Line to Neutral, NEMA L25-30R, Black nylon face, back and side wired
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Industrial Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Terminal Screws
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Mounting Screws
NEMA Rating:
L25-30R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single
Size:
Standard Product
Spec Sheet:
Special Features:
Standard Product
Standard:
NEMA WD1 and WD5, UL 498
Sub Brand:
Twist-Lock Receptacle
Tech Drawing Link:
UNSPSC:
39121406
Voltage Rating:
240
Warranty Link:
Wattage:
7200
Weight:
.250 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
