LKG PANEL RCPT, 15A 125V, L5-15R, BK by Hubbell Wiring Device-Kellems
- Part Number: HBL4713
- UPC: 00783585236759
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

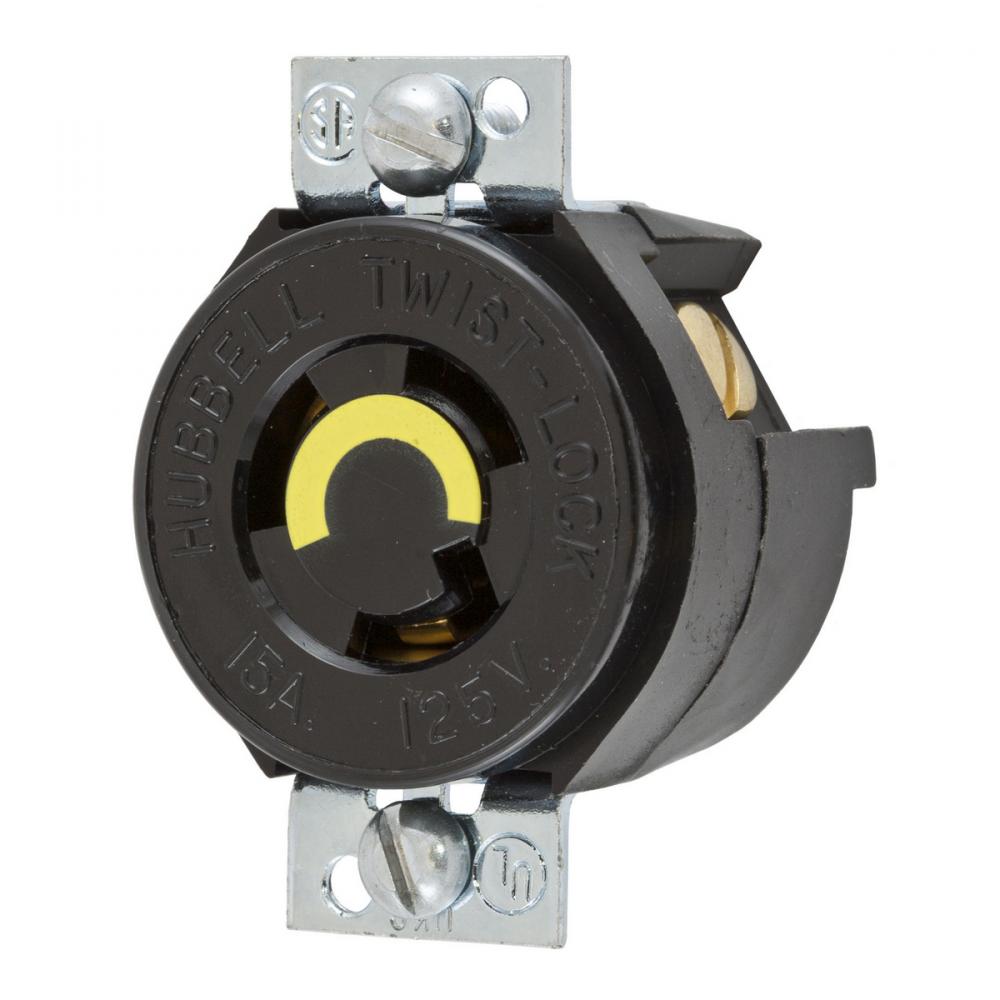

Twist-Lock® Industrial Single Panel Mount Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal Nylon, Side Wired, 1.75" or 1.937" Mounting
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
1.75 in x 1.42 in x 1.27 in
Spec Sheet:
Special Features:
Panel Mount
Standard:
Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.150 L
Wire Size:
#18 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
