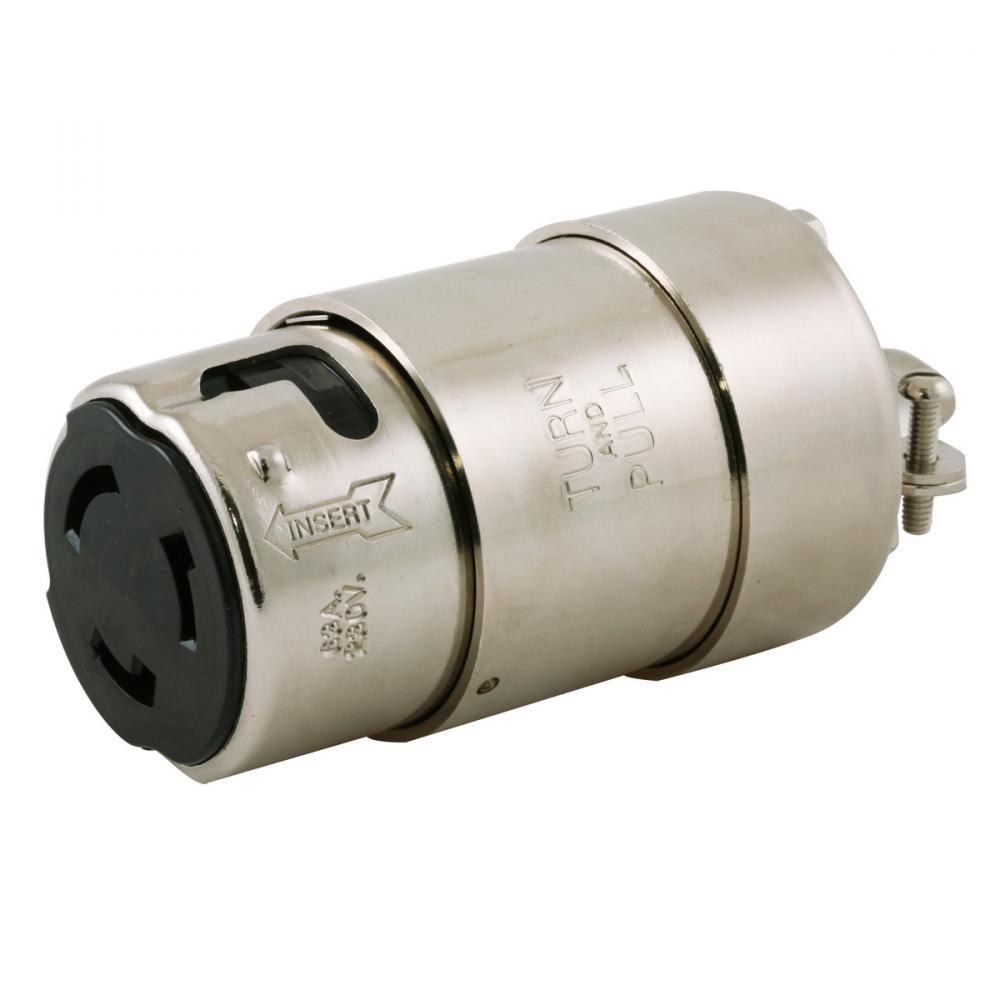

LKG MARINE CONN, 63A 230V 1 PH by Hubbell Wiring Device-Kellems
- Part Number: HBL363CRC
- UPC: 00783585454900
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 63A 230V, 2-Pole 3-Wire Grounding, Terminal Screws, Blue, Watertight
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
63
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#8 AWG to #2 AWG Copper Wire Only
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Weather Proof
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
CE Certified
Sub Brand:
Twist-Lock
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Marine Version
UNSPSC:
39121421
Voltage Rating:
230V kV
Warranty Link:
Weight:
1.400 L
Manufactured By:
Hubbell Wiring Device-Kellems
