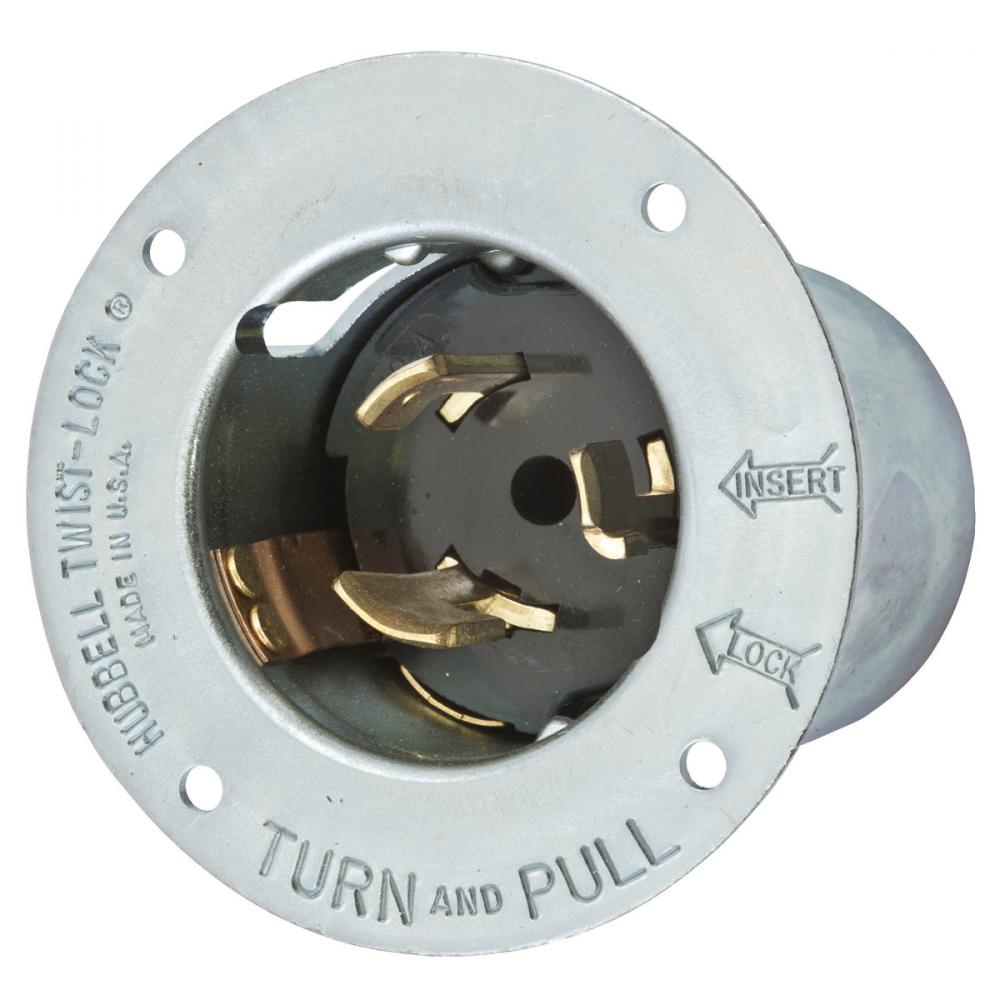

LKG INLT, 50A 125V, 2P3W by Hubbell Wiring Device-Kellems
- Part Number: CS6377
- UPC: 00783585871356
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A, 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Steel
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
50
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Connection:
Pressure Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Line Drawing Link:
Material:
Steel, Zinc Plated
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.50 in x 2.62 in x 2.17 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
50A Twist-Lock
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
6,250
Weight:
.850 L
Wire Size:
#10 AWG to #6 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
