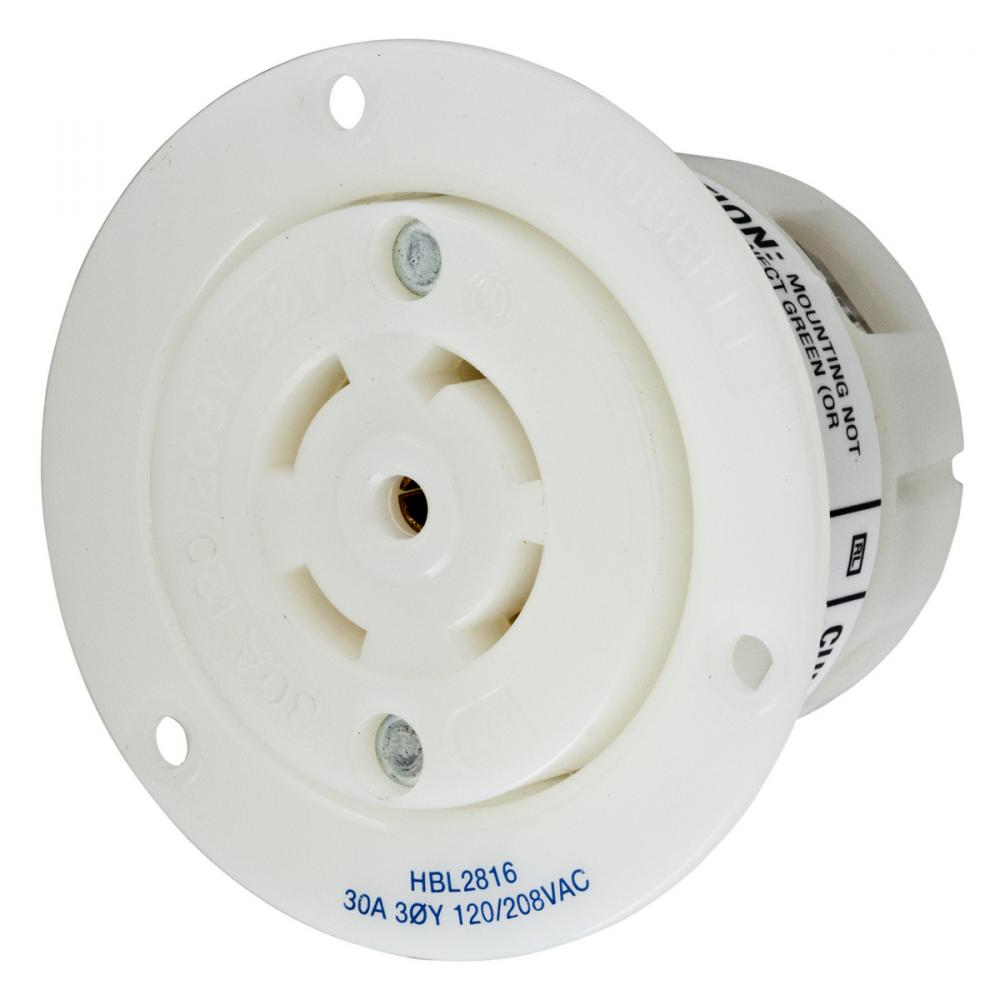

LKG FLG-RCPT,30A 3P120/208V,L21-30R,WH by Hubbell Wiring Device-Kellems
- Part Number: HBL2816
- UPC: 00783585039688
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Insulgrip® Flanged Receptacle, 30A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-30R, Nylon casing, back wired, White
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L21-30R
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3 Phase WYE
Size:
3.06 in x 3.06 in x 2.46 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Flanged Single
UNSPSC:
39121406
Voltage Rating:
120/208
Warranty Link:
Wattage:
6,240
Weight:
.215 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
