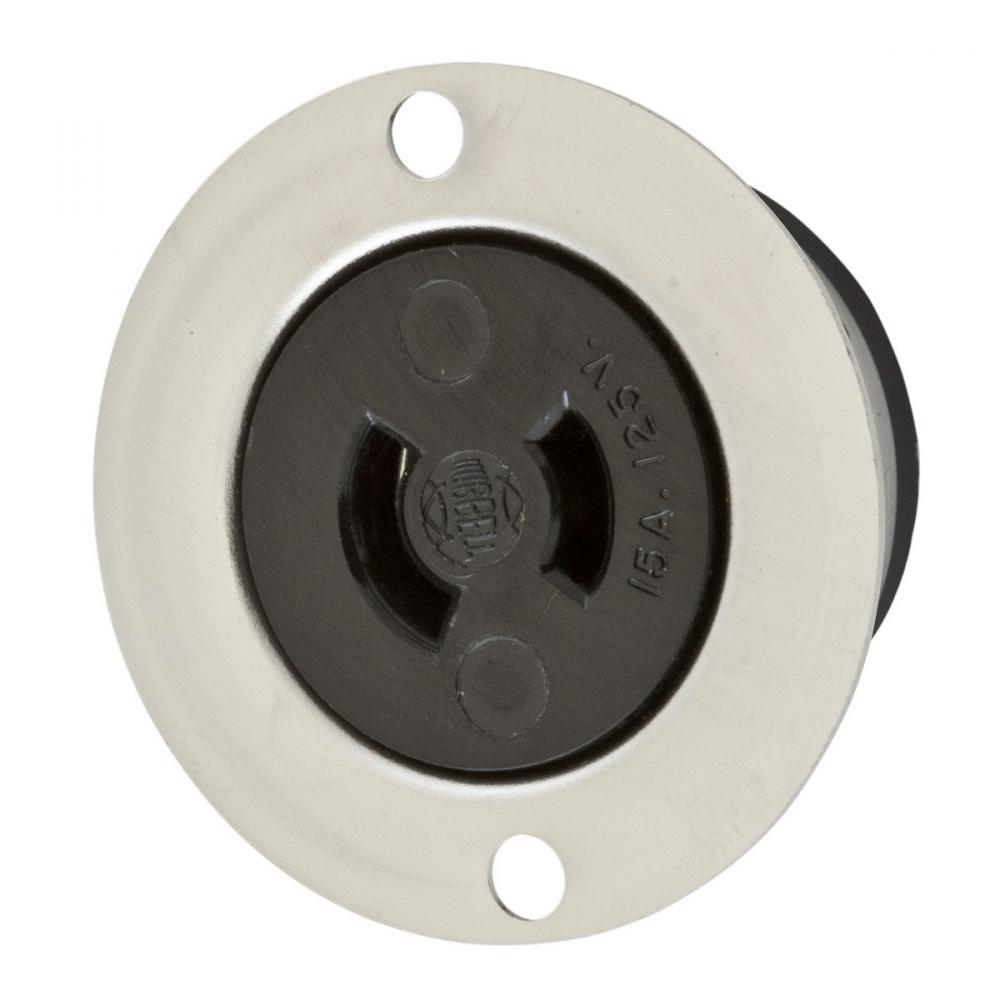

LKG FLG-RCPT, MIDGET 15A 125V, ML-1R by Hubbell Wiring Device-Kellems
- Part Number: HBL7468
- UPC: 00783585237336
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125V AC, 2-Pole 2-Wire Non Grounding, NEMA ML-1R, Screw Terminal, Stainless Steel Flange.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Connection:
Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
ML-1R
Number Of Poles:
2-Pole
Number Of Wires:
2-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
1.63 in x 1.63 in x 0.78 in
Spec Sheet:
Special Features:
Metallic Flange
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Flanged Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.047 L
Wire Size:
#18 AWG to #14 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
