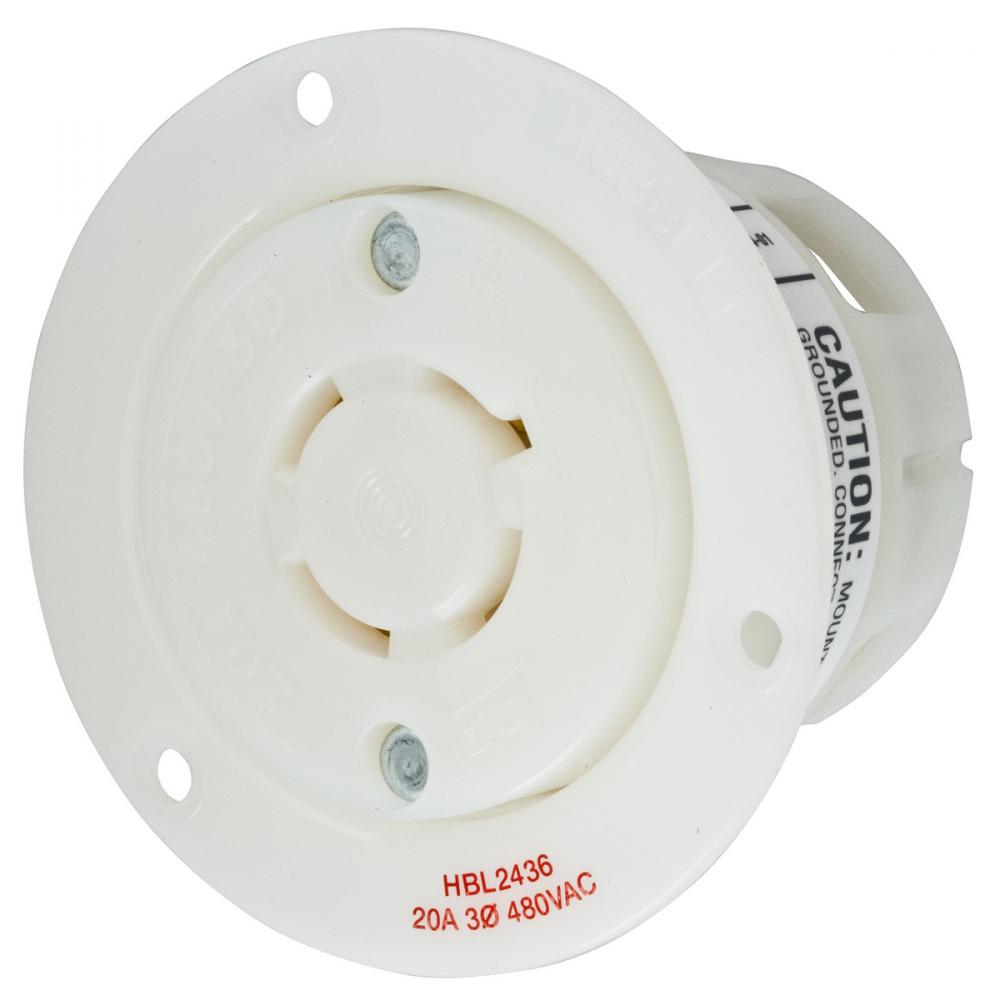

LKG FLG-RCPT, 20A 3P 480V, L16-20R, WH by Hubbell Wiring Device-Kellems
- Part Number: HBL2436
- UPC: 00783585038346
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 3 Phase 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, Nylon casing, Back wired, White.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Insulgrip
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L16-20R
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
3.06 in x 3.06 in x 2.27 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Flanged Receptacle
UNSPSC:
39121406
Voltage Rating:
3 Phase 480
Warranty Link:
Wattage:
9,600
Weight:
.215 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
