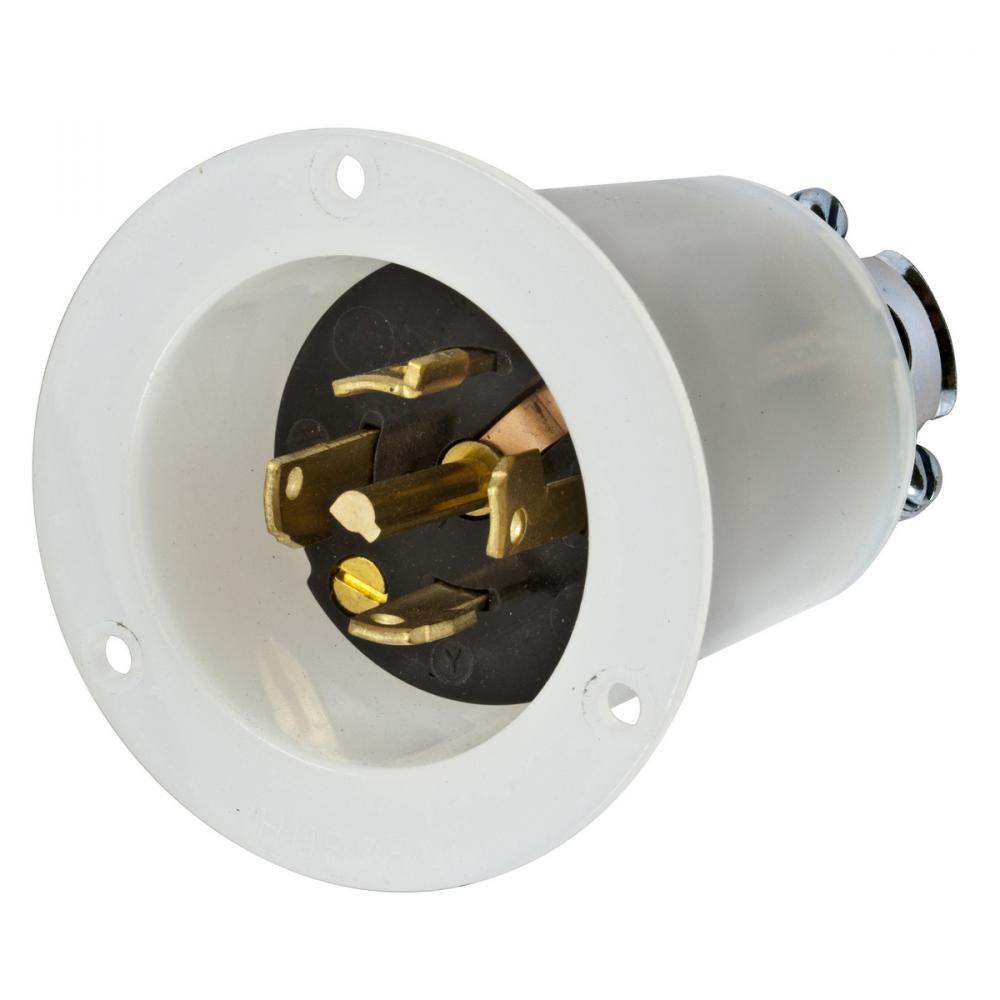

LKG FLG-INLT, VARILOAD,4P5W,20A120/208V by Hubbell Wiring Device-Kellems
- Part Number: HBL45985CL
- UPC: 00783585238203
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Twist-Lock® VariLoad®, Flanged Inlet, 20A 3-Phase 120/208V AC- 400Hz, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal Nylon, Unique Center Pin
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
3.06 in x 3.06 in x 3.64 in
Spec Sheet:
Special Features:
Unique Center Pin
Standard:
Listed to UL 498
Sub Brand:
Valiload Twist-Lock Inlets
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
3 Phase WYE 120/208
Warranty Link:
Wattage:
4,160
Weight:
.450 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
