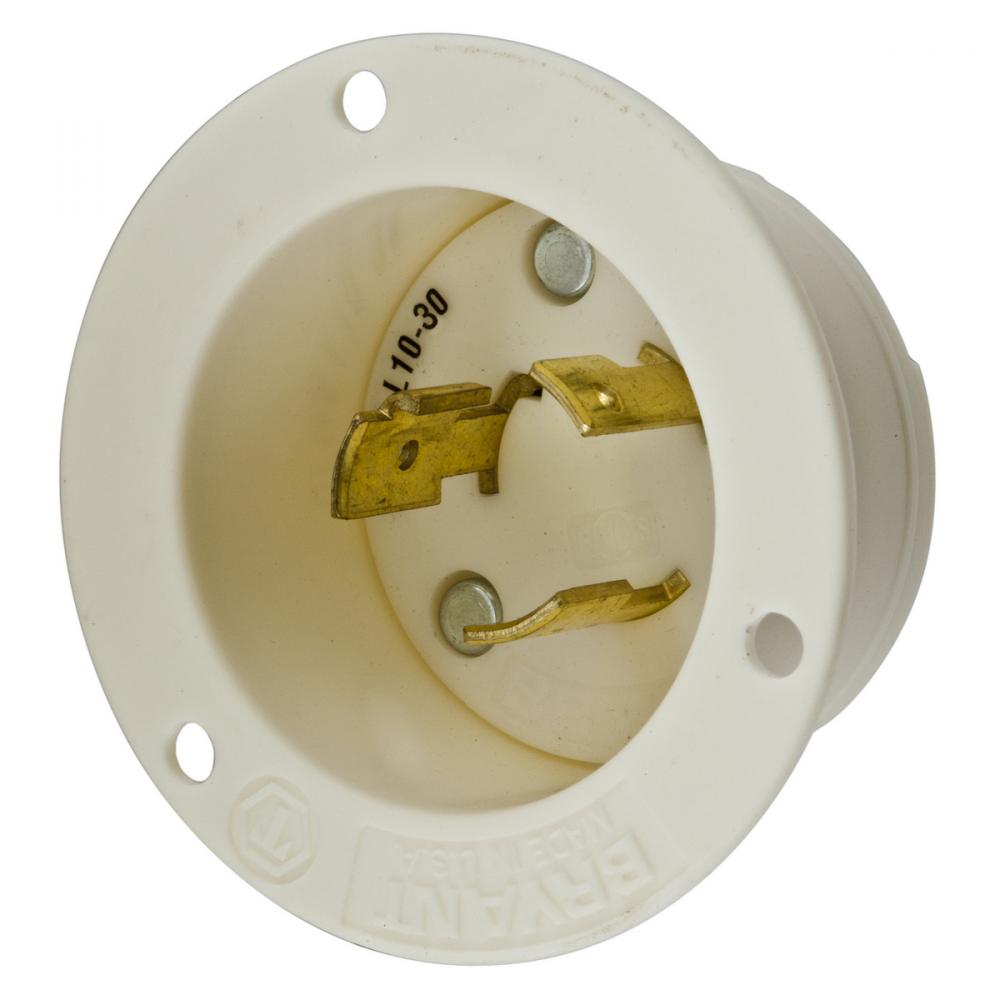

LKG FLG INLT, 30A 125/250V, L10-30P, WH by Hubbell Wiring Device-Kellems
- Part Number: HBL2665
- UPC: 00783585456805
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Insulgrip® Flanged Inlet, 30A, 125/250V AC, 3 Pole, 3 Wire Non-Grounding, NEMA L10-30P, Nylon casing, back wired
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Material:
Nylon
NEMA Rating:
L10-30P
Number Of Poles:
3-Pole
Number Of Wires:
3-Wire Non-Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Spec Sheet:
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Weight:
.250 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
