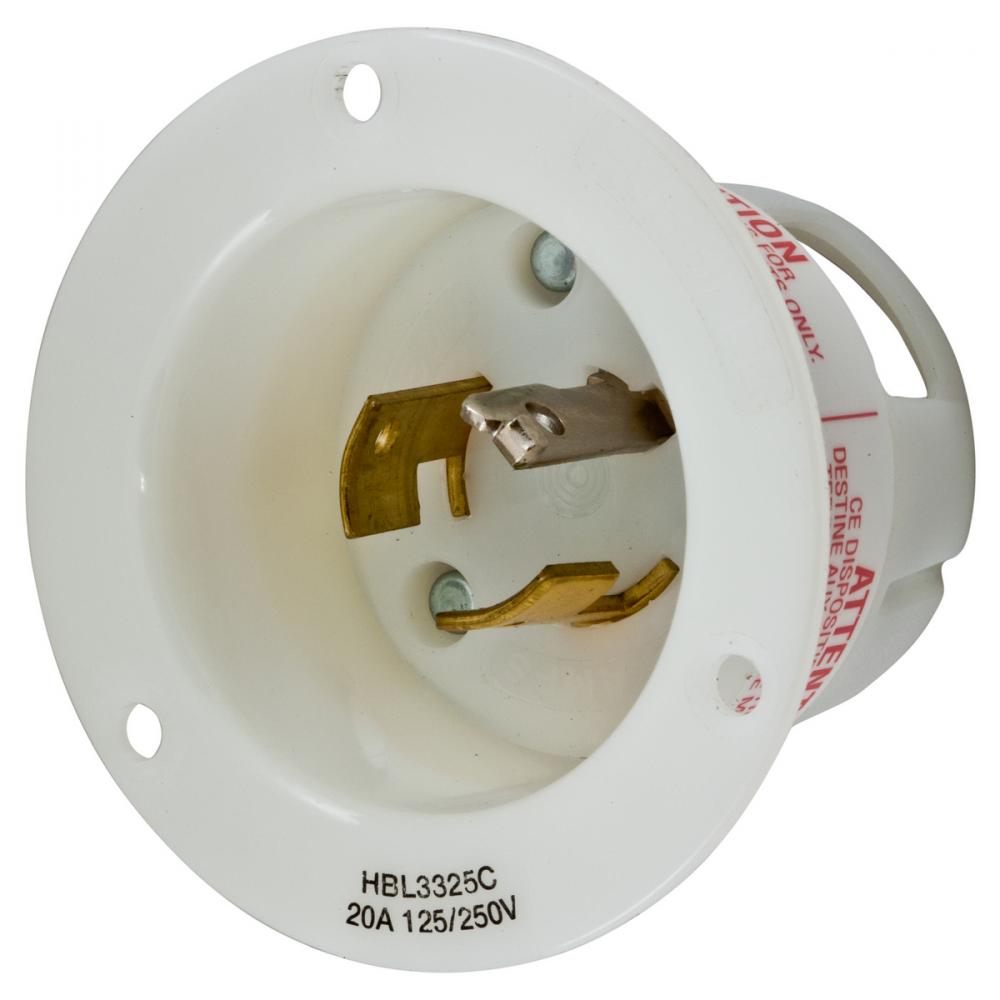

LKG FLG-INLT, 20A 125/250V, 3P3W, WH by Hubbell Wiring Device-Kellems
- Part Number: HBL3325C
- UPC: 00783585039794
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 125/250V, 3-Pole 3-Wire Non-Grounding, Non-NEMA, Screw Terminal, Nylon casing, Back wired, White.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
2.88 in x 2.88 in x 1.93 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
5,000
Weight:
.400 L
Wire Size:
#16 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
