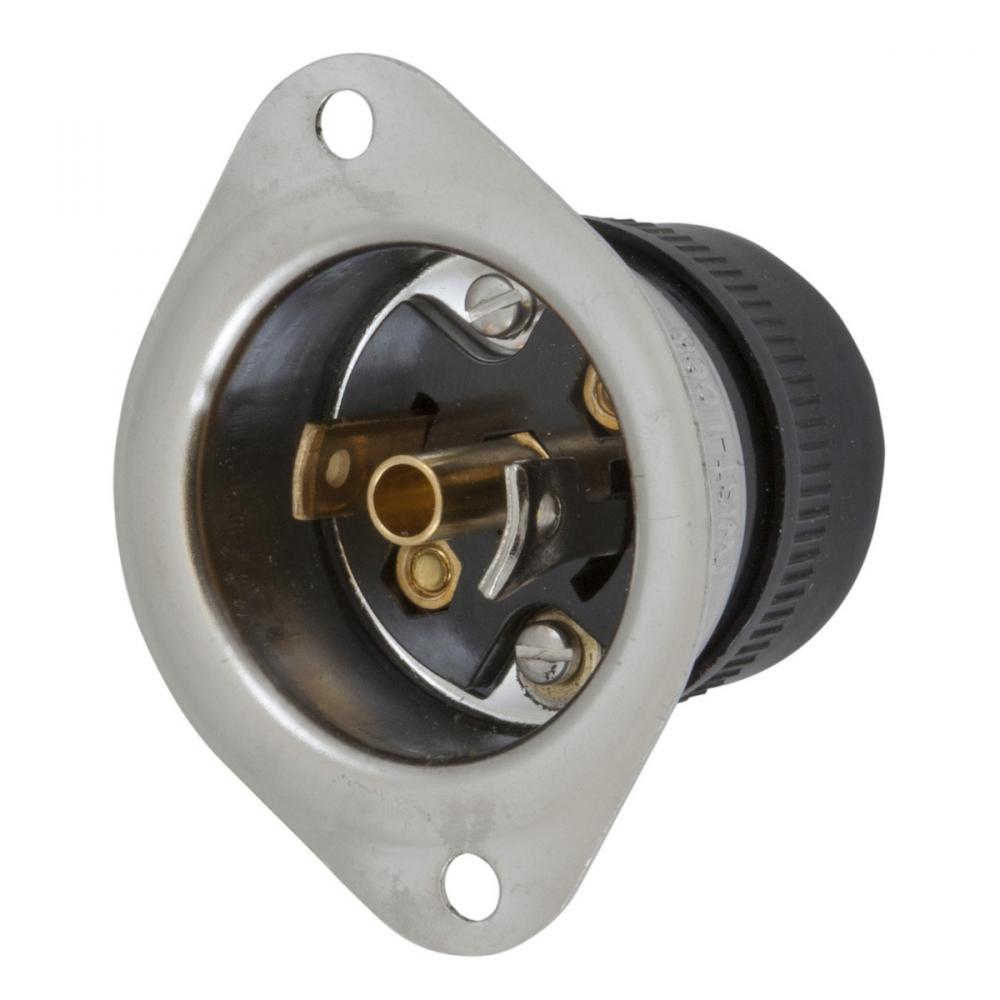

LKG FLG-INLET, MIDGET, 15A 125V, ML-2P by Hubbell Wiring Device-Kellems
- Part Number: HBL7551
- UPC: 00783585237619
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Twist-Lock® Devices, Midget Flanged Inlet, 15A 125V, NEMA ML-2P, Covered terminals, stainless steel flange, accepts cord .500" (12.7) dia.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
Insulated Body
Line Drawing Link:
Material:
Stainless Steel
Mounting:
Screw Mount
NEMA Rating:
ML-2P
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Midget Locking
Spec Sheet:
Special Features:
Covered Terminals, Metallic Flange
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.100 L
Wire Size:
#18 AWG to #14 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
