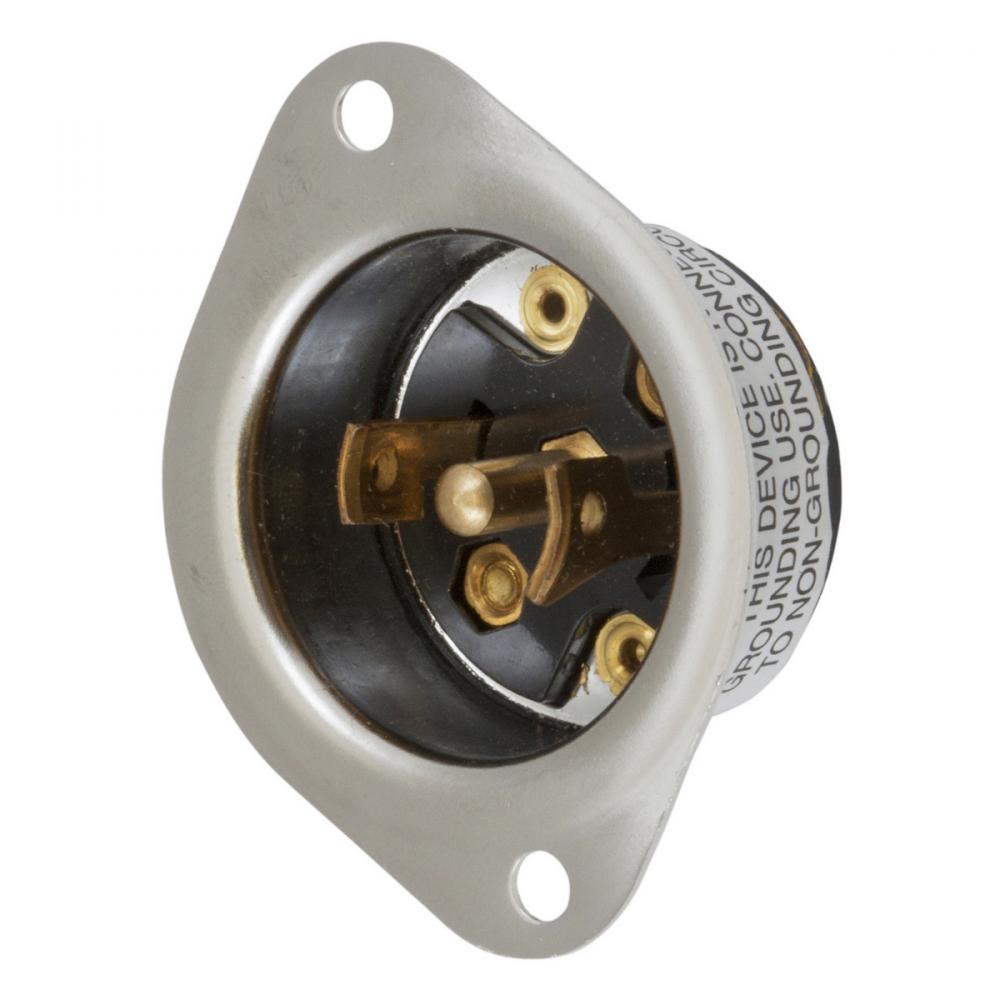

LKG F-INLT,MIDGET,15A 125/250V,ML-3P,MET by Hubbell Wiring Device-Kellems
- Part Number: HBL7486
- UPC: 00783585237442
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Stainless Steel Flange.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, Stainless
Connection:
Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
Insulated Body
Line Drawing Link:
Material:
Stainless Steel
Mounting:
Screw Mount
NEMA Rating:
ML-3P
Number Of Poles:
3-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
2.06 in x 1.63 in x 0.98 in
Spec Sheet:
Special Features:
Metallic Flange
Standard:
Listed to UL 498
Sub Brand:
Twist-Lock Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
3,750
Weight:
.100 L
Wire Size:
#18 AWG to #14 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
