LKG CONN, VARILOAD, 4P5W, 20A 120/208V by Hubbell Wiring Device-Kellems
- Part Number: HBL45935
- UPC: 00783585238159
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

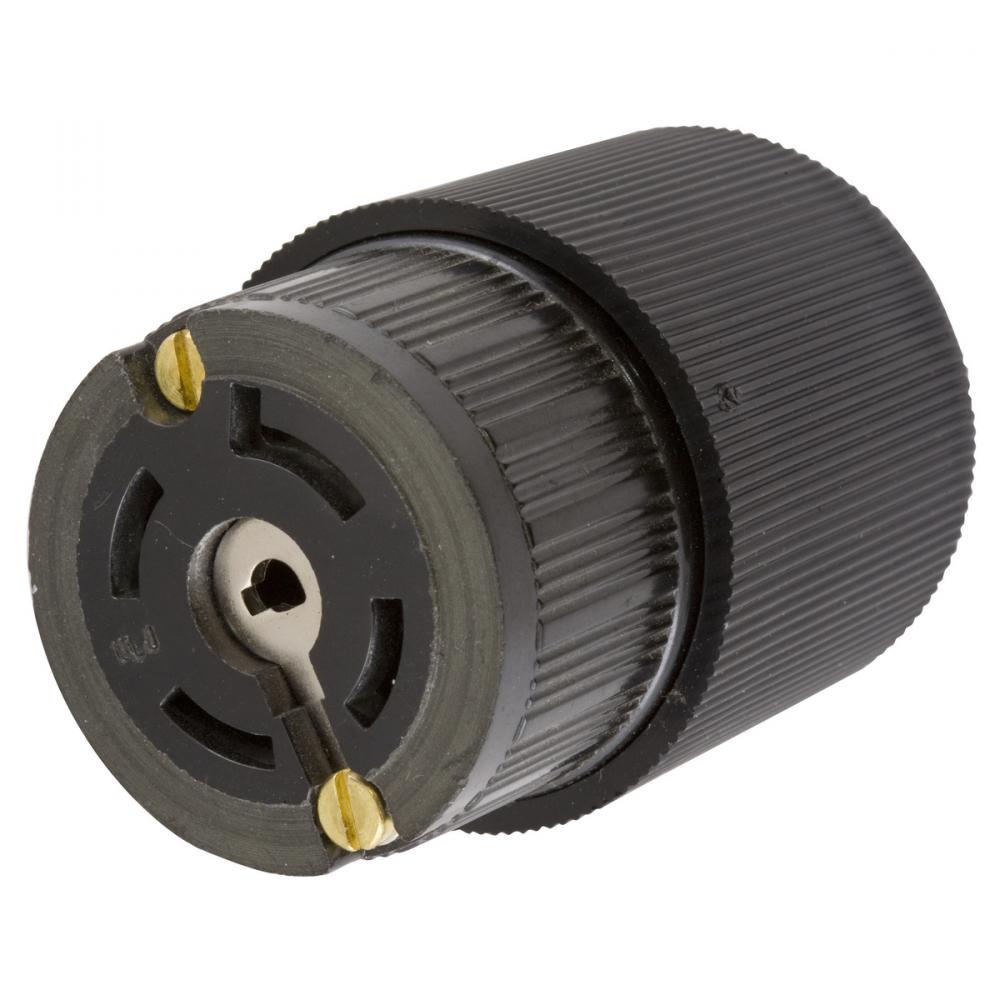

Locking Devices, Twist-Lock®, Variload®, Female Connector Body, 20A 3-Phase Wye 120/208V AC only - 400Hz, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black Non Metallic Body, Unique Center Pin.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#12AWG to #8AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
5-Wire Grounding
Number Of Poles:
4-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.13 in x 2.13 in x 3.79 in
Spec Sheet:
Special Features:
Unique Center Pin
Standard:
Listed to UL 498
Sub Brand:
VariLoad
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
3 Phase WYE 120/208
Warranty Link:
Weight:
.500 L
Manufactured By:
Hubbell Wiring Device-Kellems
