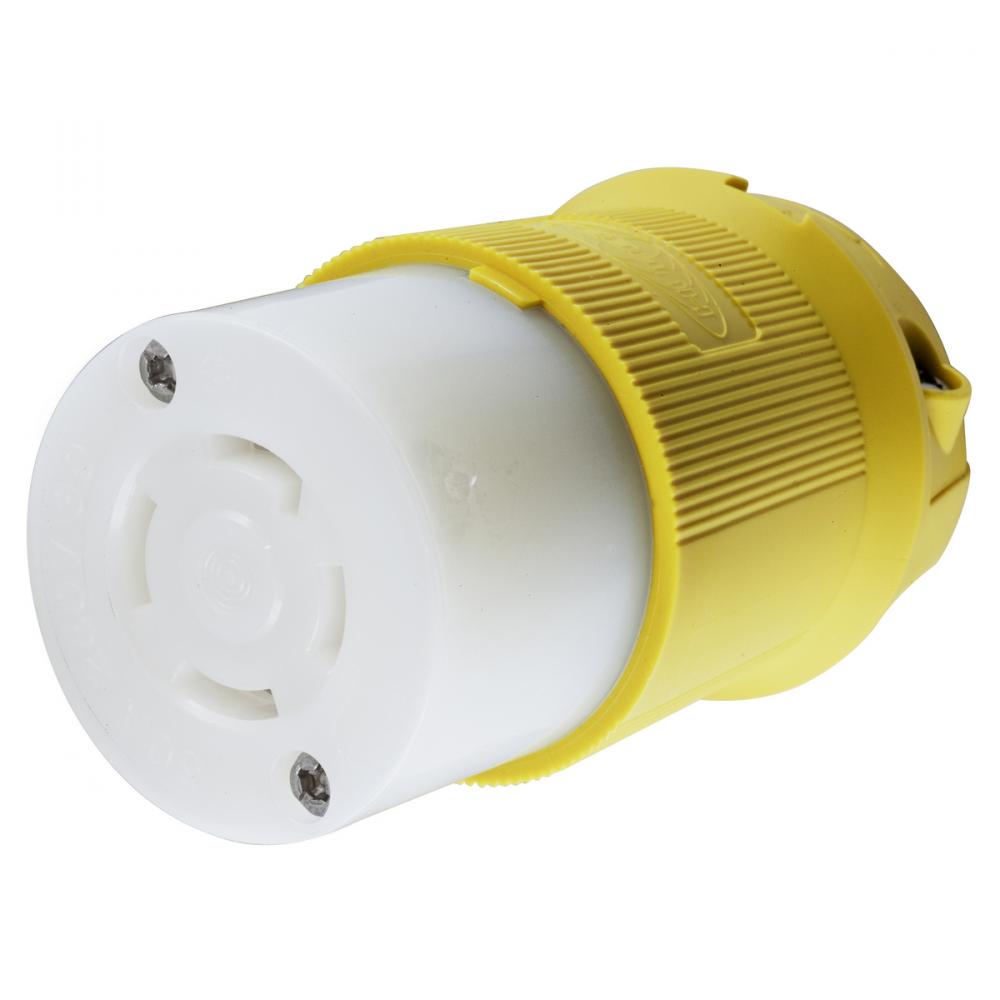

LKG CONN, CM, 30A 3PH 250V L15-30R by Hubbell Wiring Device-Kellems
- Part Number: HBL27CM23
- UPC: 00783585039589
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Marine Grade, Female Insulgrip® Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30R, Screw Terminal, Yellow Nylon.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
30
Application:
Heavy Duty Industrial/Marine
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#12AWG to #8AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Corrosion resistant
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L15-30R
Number Of Conductors:
4-Wire Grounding
Number Of Poles:
3-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.33 in x 2.33 in x 3.86 in
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42
Sub Brand:
Twist-Lock
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
250
Warranty Link:
Weight:
.400 L
Manufactured By:
Hubbell Wiring Device-Kellems
