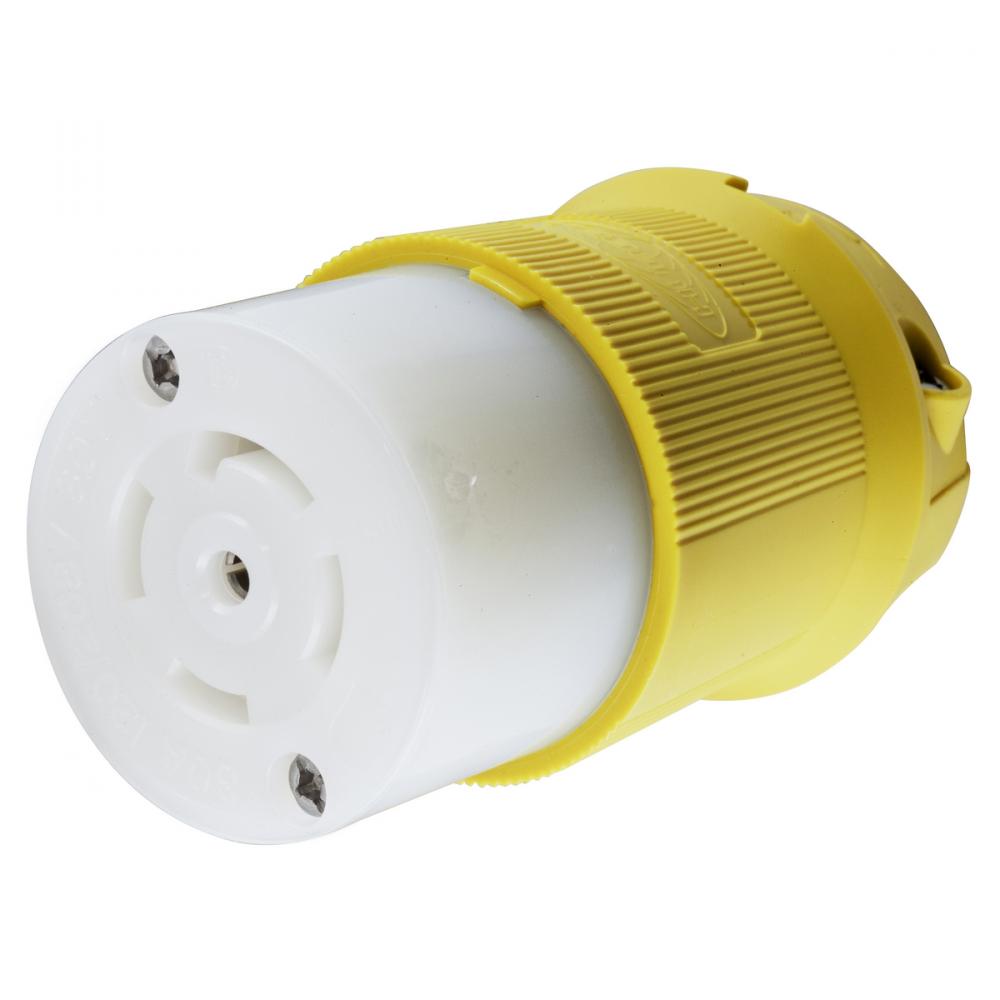

LKG CONN, CM, 30A 3PH 120/280V L21-30R by Hubbell Wiring Device-Kellems
- Part Number: HBL28CM13
- UPC: 00783585039787
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Corrosion Resistant Insulgrip® Connector, 30A, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30R, Yellow nylon
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
30
Application:
Heavy Duty Industrial/Marine
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#12AWG to #8AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Corrosion resistant
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L21-30R
Number Of Conductors:
5-Wire Grounding
Number Of Poles:
4-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.33 in x 2.33 in x 3.86 in
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Insulgrip
UNSPSC:
39121421
Voltage Rating:
120/208
Warranty Link:
Weight:
.350 L
Manufactured By:
Hubbell Wiring Device-Kellems
