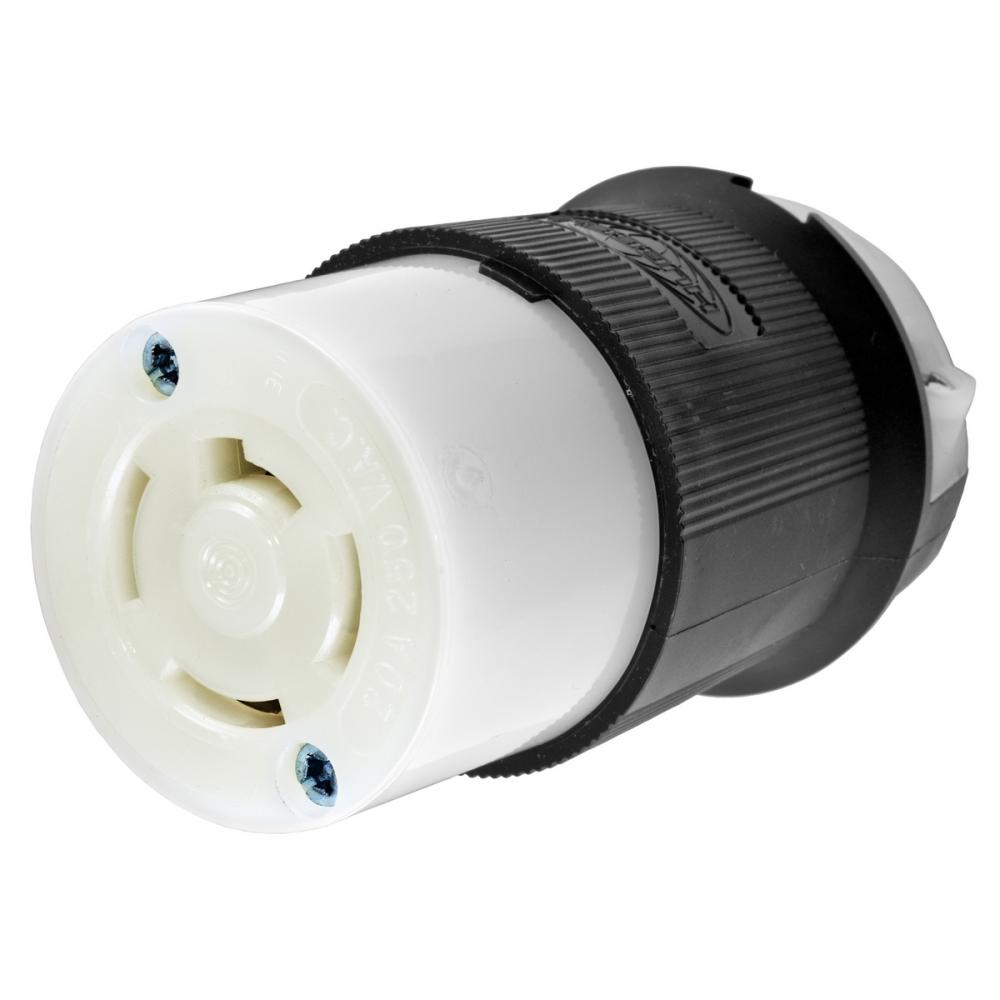

LKG CONN, 3P4W, 20A 3PH 250V, BK by Hubbell Wiring Device-Kellems
- Part Number: HBL7413GCB
- UPC: 00783585037592
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White Nylon.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, White
Conductor Range:
#14AWG to #12AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
3-Wire Non-Grounding
Number Of Poles:
3-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.33 in x 2.33 in x 3.86 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL498
Sub Brand:
Twist-Lock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
250
Warranty Link:
Weight:
.450 L
Manufactured By:
Hubbell Wiring Device-Kellems
