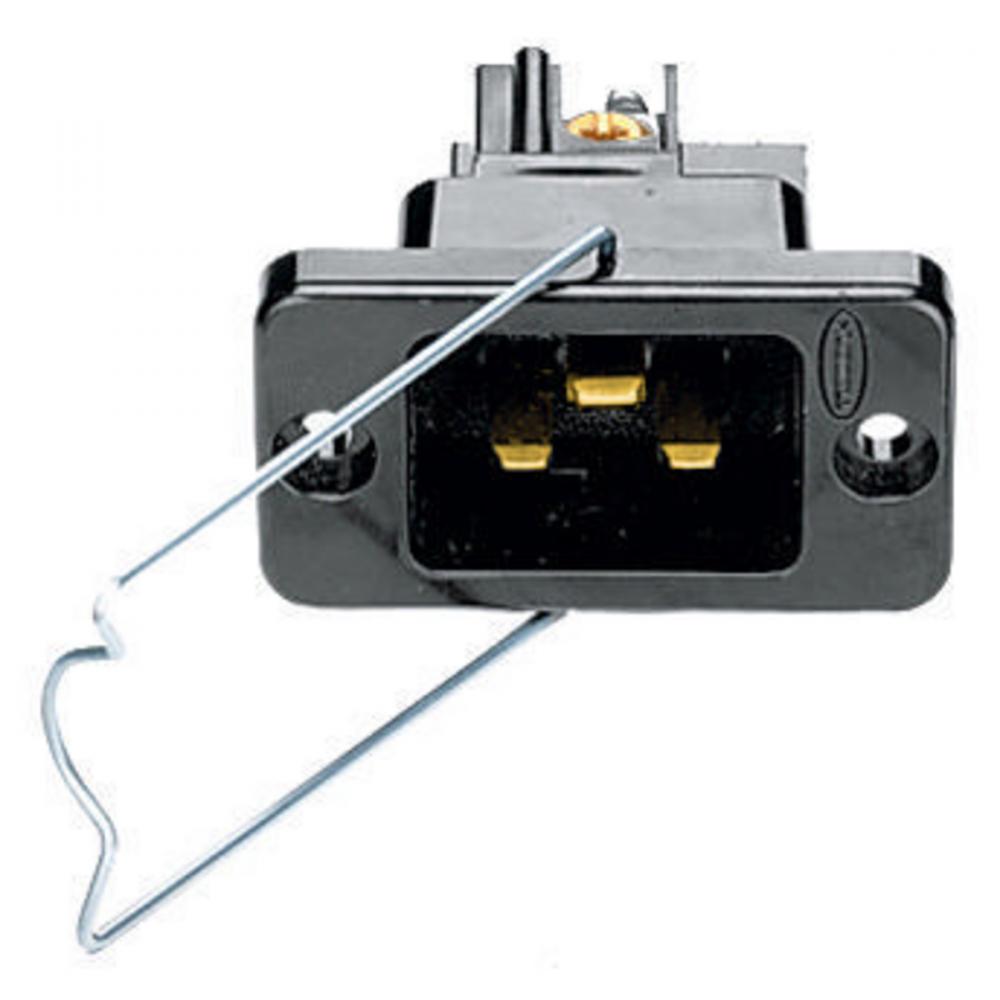

IEC320 MALE INLT W/CLAMP,20/16A 250V by Hubbell Wiring Device-Kellems
- Part Number: H320BL
- UPC: 00783585777047
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, IEC 320 Devices, Inlet with Wire Bail, 16 A250V, International Rated, Pressure Screw Terminal, Black, Sin le Pack.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20/16
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Impact Resistant
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
1.47 in x 1.64 in x 1.19 in
Spec Sheet:
Special Features:
With Locking Bail
Standard:
CSA certified 20A 250V AC-File No. 17337;TUV and VDE Certified;UL classified to IEC 320, 16A 250V AC-File No. E111246;UL Listed 20A 250V AC-File No. E1706
Sub Brand:
Straight Blade Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Chassis Single Inlet
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
7,500
Weight:
.100 L
Wire Size:
North American-#16AWG-#12AWG; International-1.55mm²-2.5mm².
Manufactured By:
Hubbell Wiring Device-Kellems
