HBL SHC1027 by Hubbell Wiring Device-Kellems
- Part Number: SHC1027
- UPC: 00783585200279
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

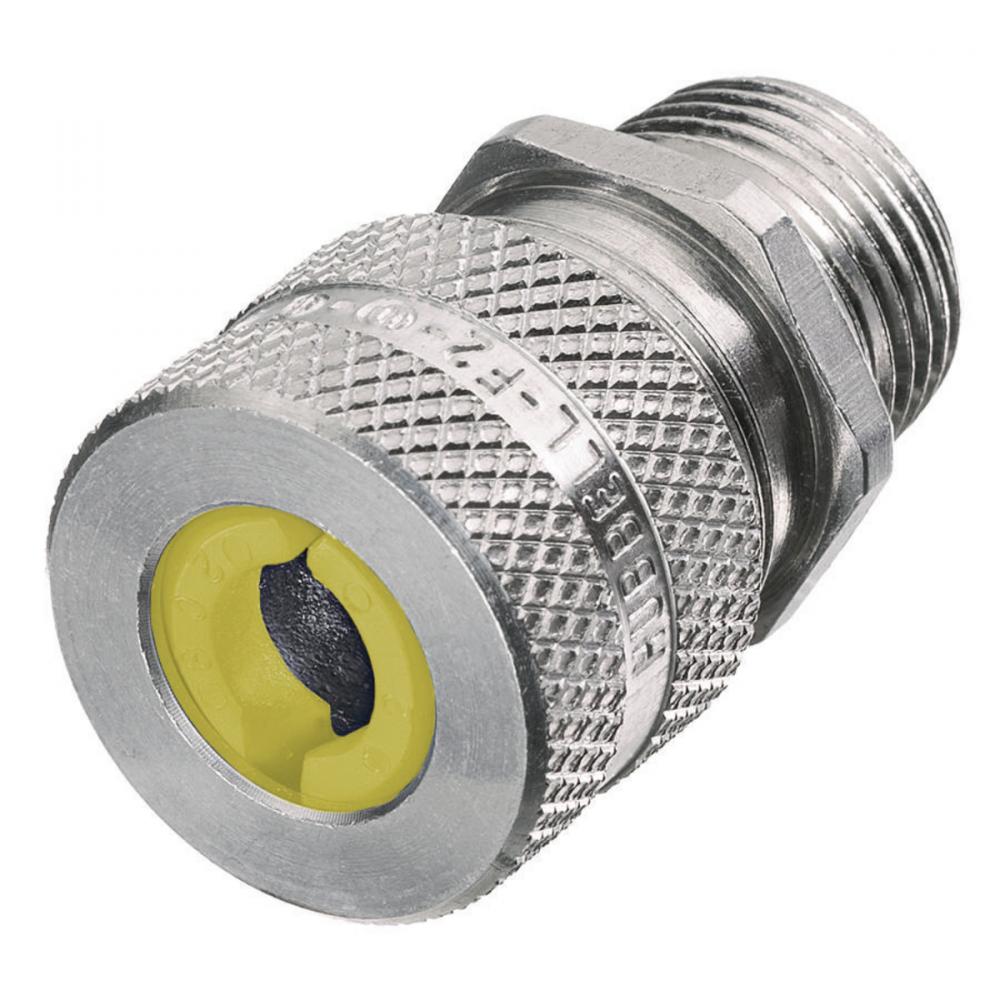

HWDK SHC1027 CORD CONN, STR ML, .50
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Straight Male- Form 3
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Conductor Range:
0.63- 0.75 in (15.9- 19.0 mm)
Country Of Origin:
CN
Environmental Conditions:
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Finish:
Machined
Installation Link:
Line Drawing Link:
Material:
Aluminum
Mounting:
Locknut or Tapped Opening
NEMA Rating:
NEMA Type 4, 4X, 12 and 13
Number Of Conductors:
Single
Size:
1/2" NPT
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
Kellems Wire Management
Tech Drawing Link:
Temperature Rating:
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Type:
Straight Male
UNSPSC:
39121431
Warranty Link:
Weight:
.023 L
Manufactured By:
Hubbell Wiring Device-Kellems
