HBL RR430FW by Hubbell Wiring Device-Kellems
- Part Number: RR430FW
- UPC: 00883778100734
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

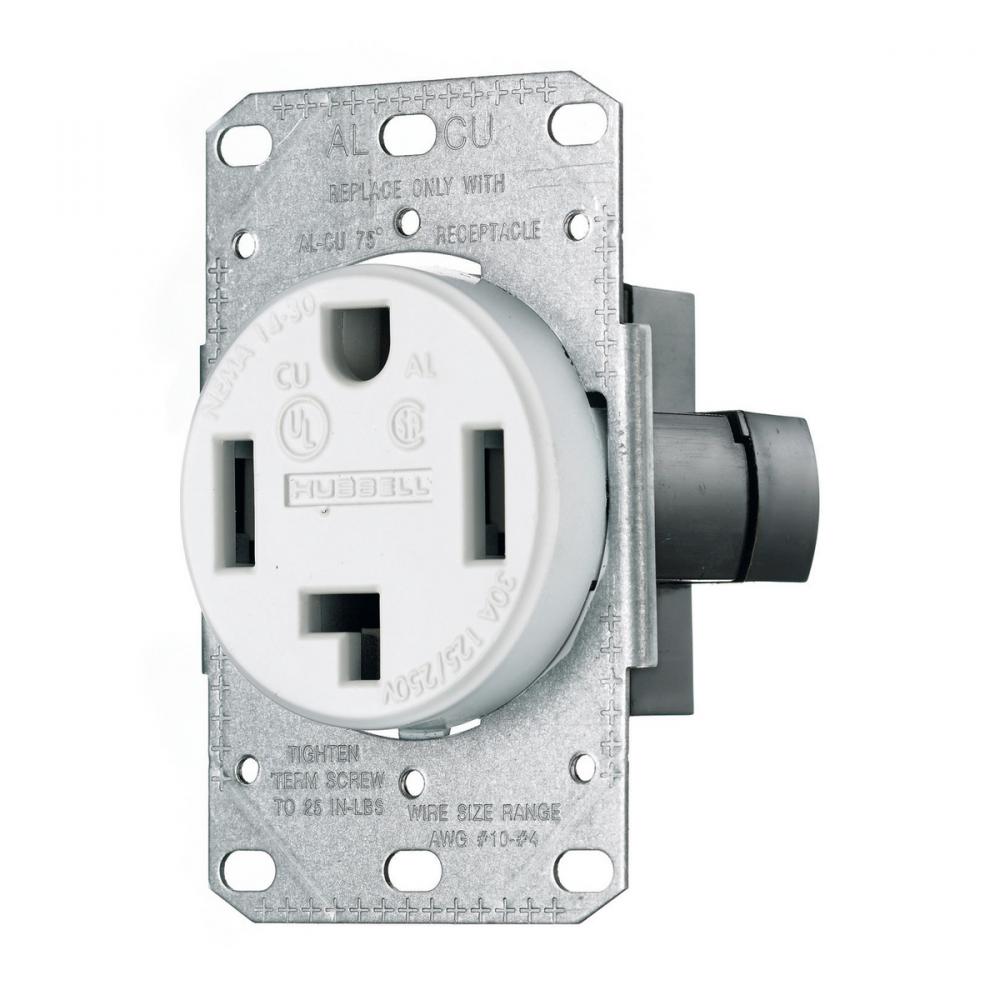

HWS RR430FW RECPT, SB, 30A 125/250V
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Residential Range and Dryer Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Pressure Screw Terminals
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
14-30R
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Flush Mount Receptacle
Standard:
UL Listed
Sub Brand:
Straight Blade Devices
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
7,500
Weight:
.141 L
Wire Size:
#10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
