HBL RCD101BK by Hubbell Wiring Device-Kellems
- Part Number: RCD101BK
- UPC: 00883778110245
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

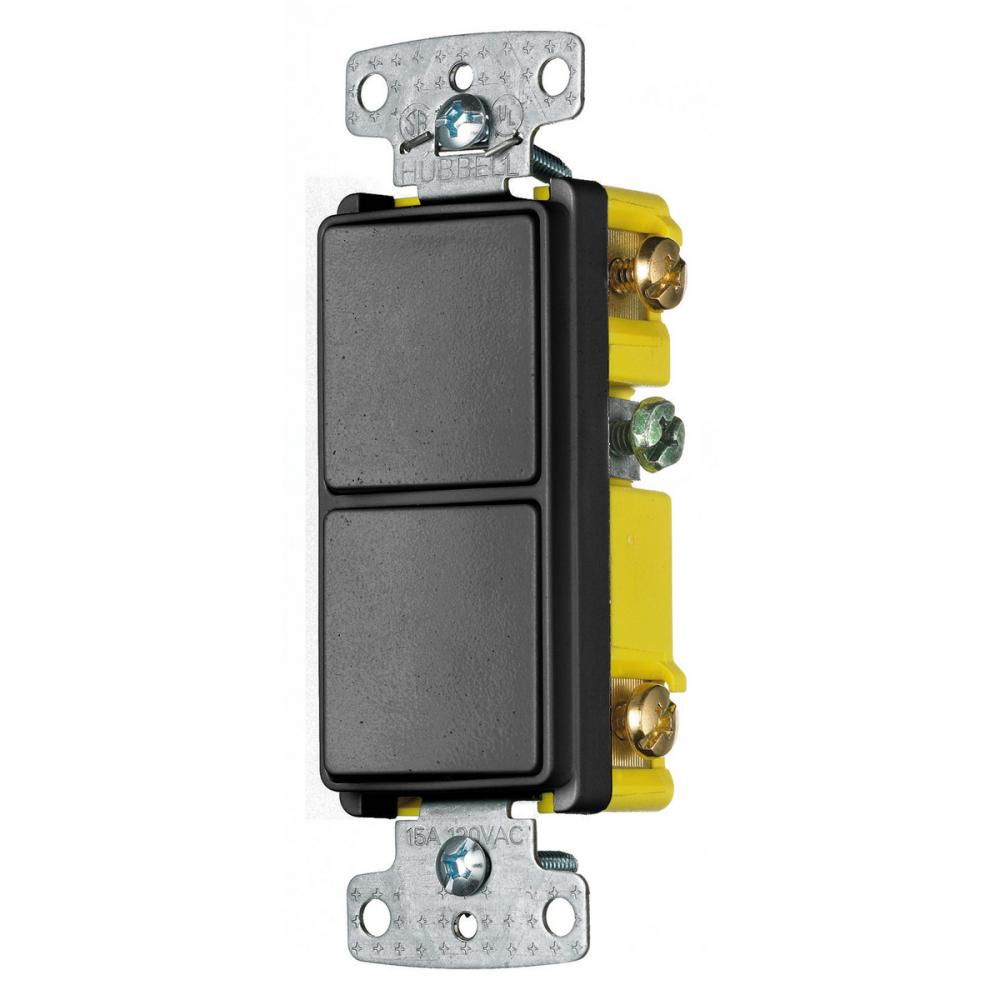

HWS RCD101BK DECORA COMBO 2-SP 15A SWITCH W/GND 120/277V BLACK
Specifications
Details
Category:
Lighting Controls
Action:
Snap Switch
Actuator:
Rocker
Amperage Rating:
15
Application:
Residential
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Terminal Screws
Contact Configuration:
Two Position
Contact Rating:
15A
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Mounting:
Mounting Screws
Number Of Poles:
2) Single Pole
Operating Cycles:
30,000 Minimum
Operating Temperature:
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard Product
Standard:
CSA Certified;UL Listed E3896
Sub Brand:
Combo Devices
Tech Drawing Link:
Type:
2) Switches
UNSPSC:
39122226
Voltage Rating:
120/277V AC kV
Warranty Link:
Wattage:
4,155
Weight:
.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
