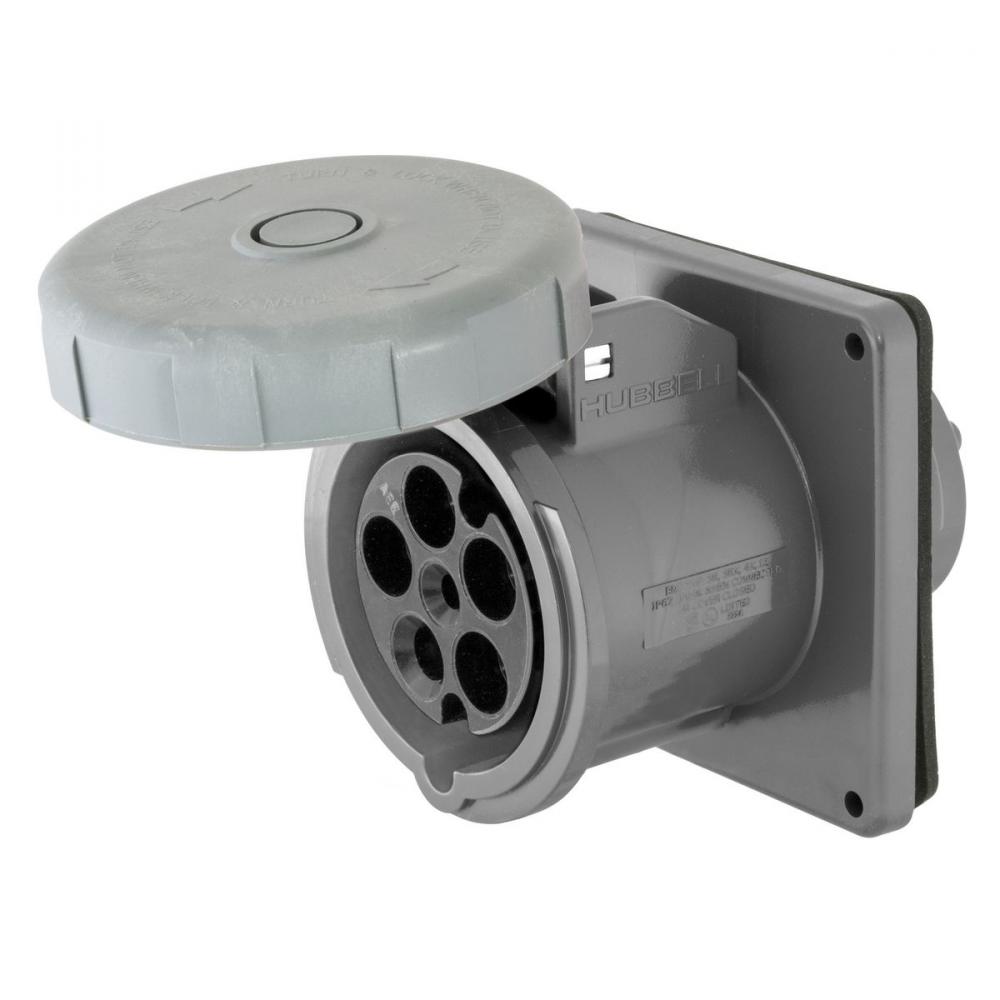

HBL M5100R9 by Hubbell Wiring Device-Kellems
- Part Number: M5100R9
- UPC: 00783585510057
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
HWDK M5100R9 MARINE P+S RCPT, 4P5W,
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
100
Application:
Marine Wiring Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Pressure Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Weather Resistant
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Sub Brand:
IEC 309 Pin and Sleeve
Tech Drawing Link:
Type:
Watertight Receptacle
UNSPSC:
39121406
Voltage Rating:
3 Phase Y 120/208
Warranty Link:
Wattage:
48,000
Weight:
3.750 L
Wire Size:
#3 AWG to #1/0 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
