HBL M4100B12R by Hubbell Wiring Device-Kellems
- Part Number: M4100B12R
- UPC: 00783585410012
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

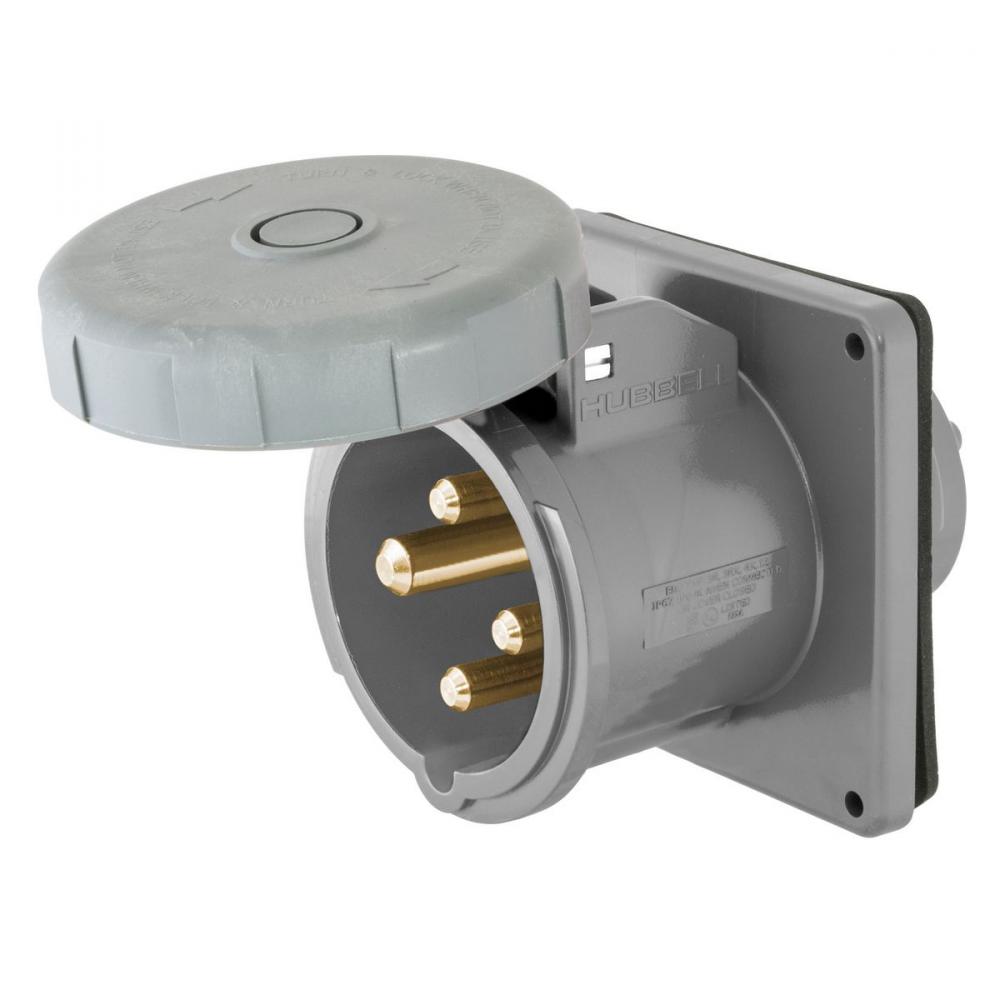

HWDK M4100B12R MARINE P+S INLET, 3P
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
100
Application:
Marine Wiring Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Pressure Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 3000V Minimum in
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Standard:
CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Sub Brand:
Pin and Sleeve Inlets
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Type:
Watertight Inlet
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
25,000
Weight:
3.100 L
Wire Size:
#3 AWG to #1/0 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
