HBL L520R by Hubbell Wiring Device-Kellems
- Part Number: L520R
- UPC: 00783585835754
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

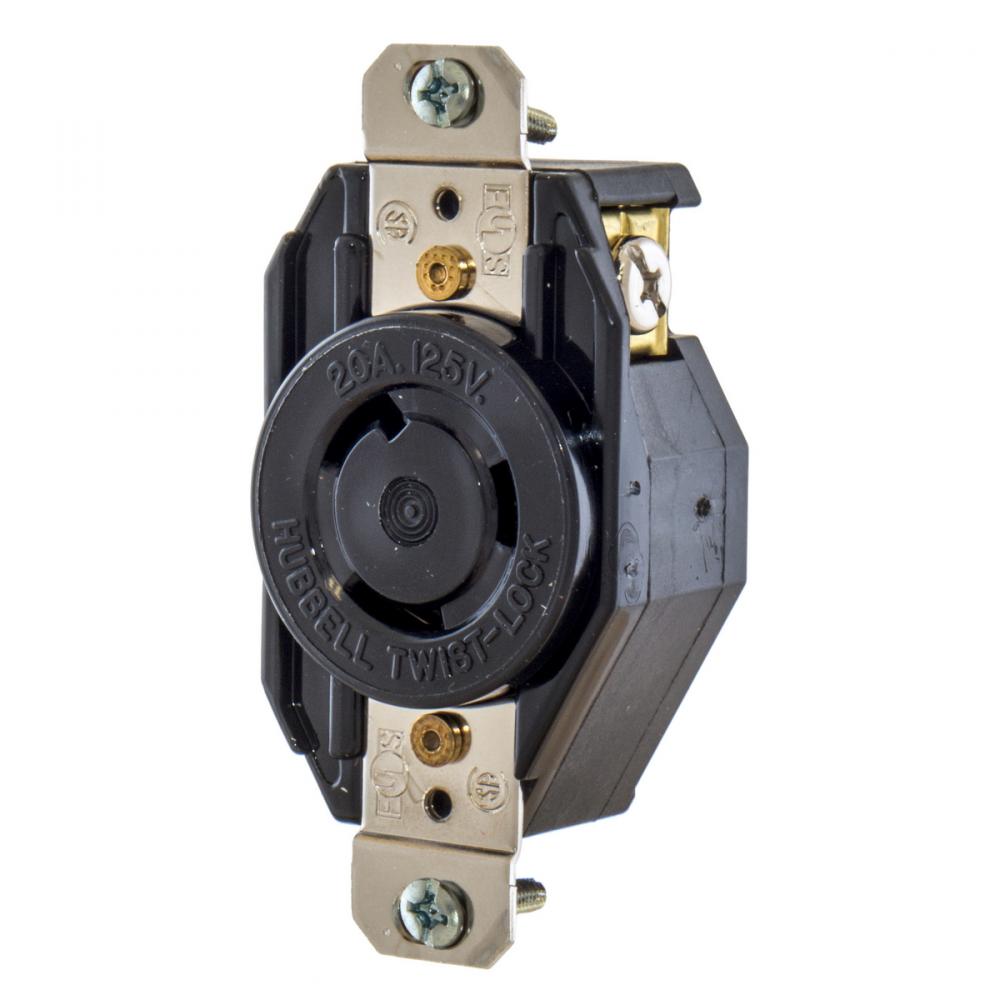

HWDK L520R LKG RECP, 20A 125V, SELSPEC, HUB PRO, L5-20R
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Phase:
Single Phase
Size:
Standard Sized Product
Special Features:
Standard Product
Standard:
NEMA WD1 and WD5, UL 498
Sub Brand:
Twist-Lock Devices
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Wattage:
2,500
Weight:
.047 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
