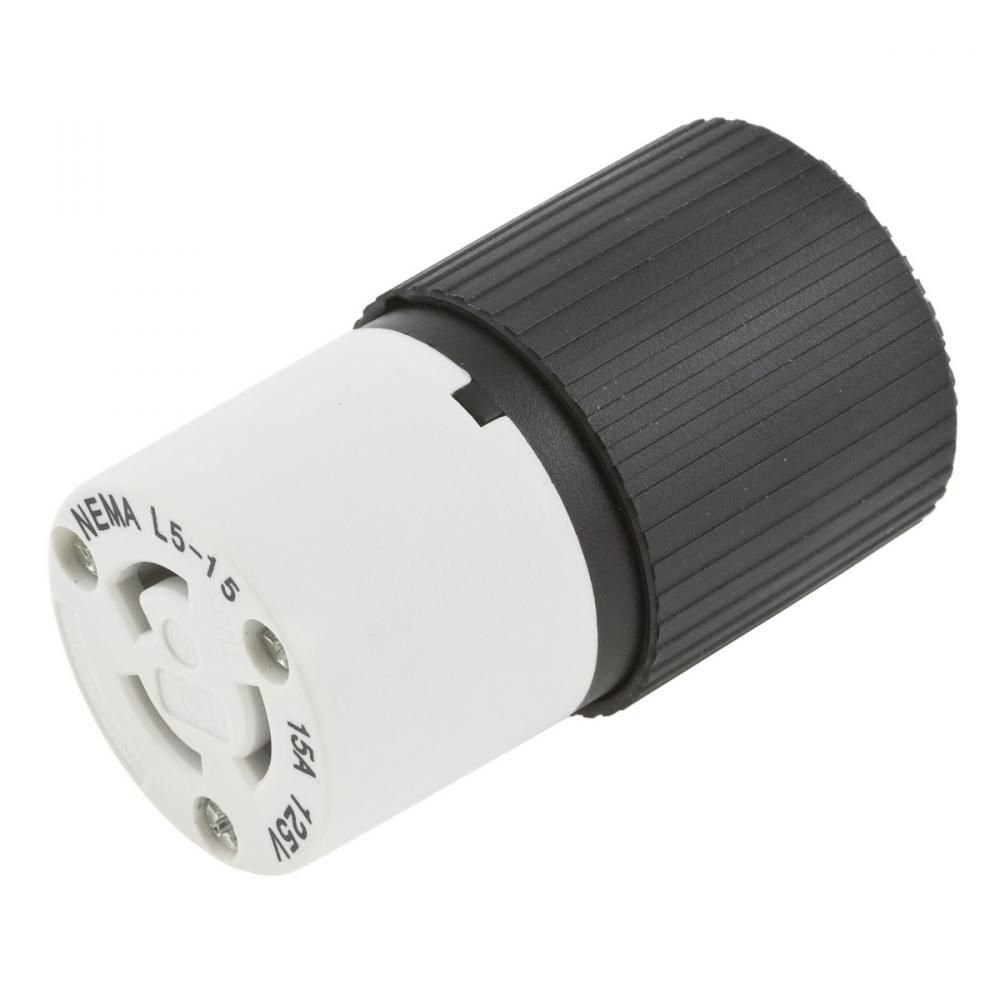

HBL L515C by Hubbell Wiring Device-Kellems
- Part Number: L515C
- UPC: 00783585835716
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
HWDK L515C LKG CONN, 15A 125V, SELS
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, White
Conductor Range:
#14 AWG to #12 AWG
Connection:
Screw Terminals
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
L5-15R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Size:
Standard
Spec Sheet:
Special Features:
Standard Product
Standard:
NEMA WD1 and WD5, UL498
Sub Brand:
Twist-Lock
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Hubbell Pro
UNSPSC:
39121421
Voltage Rating:
125
Weight:
.054 L
Manufactured By:
Hubbell Wiring Device-Kellems
