HBL L1430R by Hubbell Wiring Device-Kellems
- Part Number: L1430R
- UPC: 00783585840642
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview

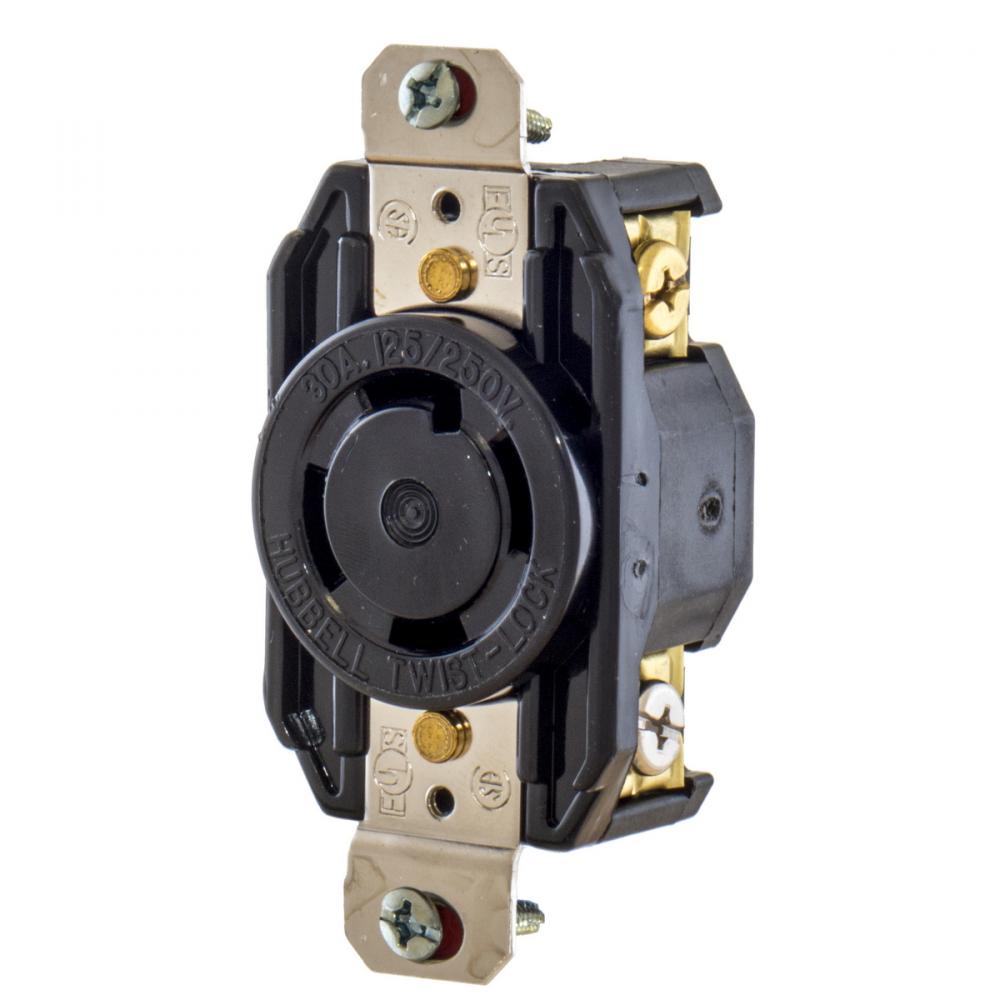

HWDK L1430R LKG RECP, 30A 125/250V, HUB PRO, L14-30R
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L14-30R
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire Grounding
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard Product
Standard:
NEMA WD1 and WD5, UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
125/250
Wattage:
7,500
Weight:
.050 L
Wire Size:
#10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
