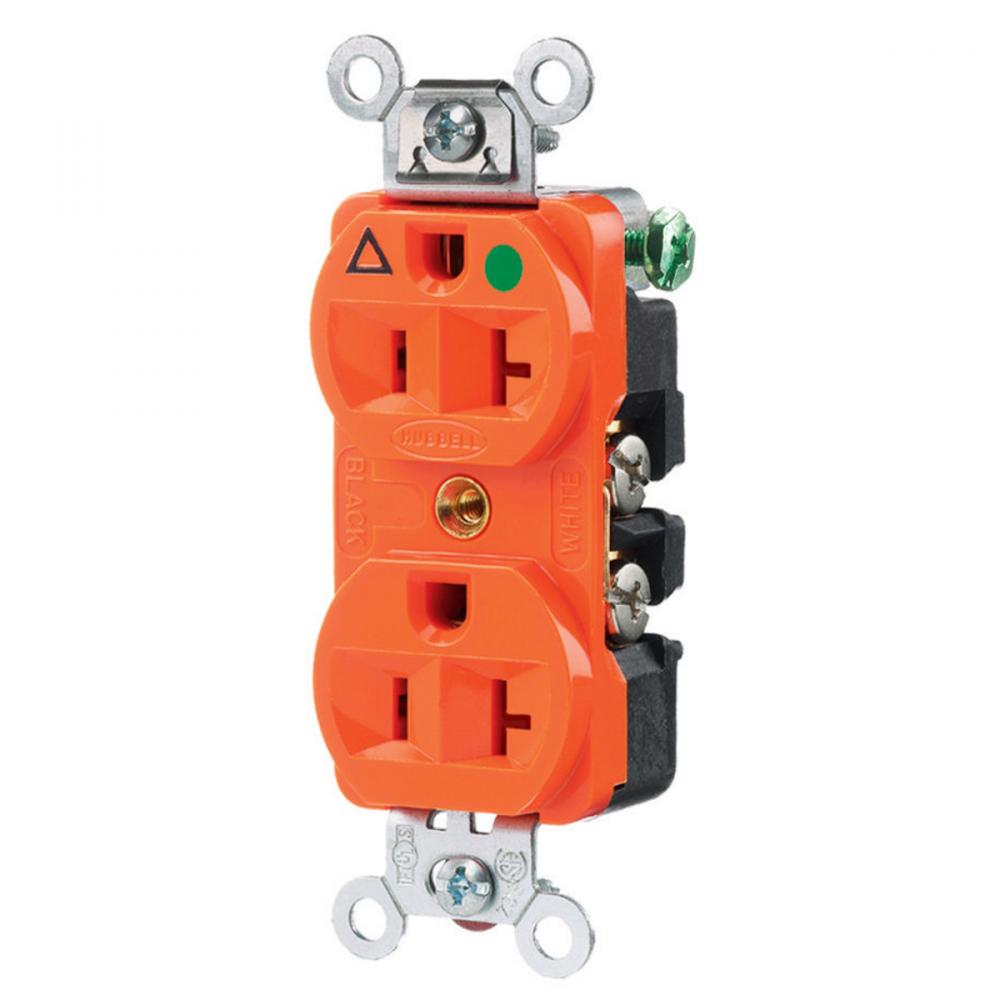

HBL IG8300 by Hubbell Wiring Device-Kellems
- Part Number: IG8300
- UPC: 00783585778440
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK IG8300 DUP RCPT, IG, HG, 20A 1
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Extra Heavy Duty Hospital Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Orange
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
3.28 in x 1.33 in x 1.05 in
Spec Sheet:
Special Features:
Standard
Standard:
CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade Devices
Type:
Duplex Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.250 L
Wire Size:
#12 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
