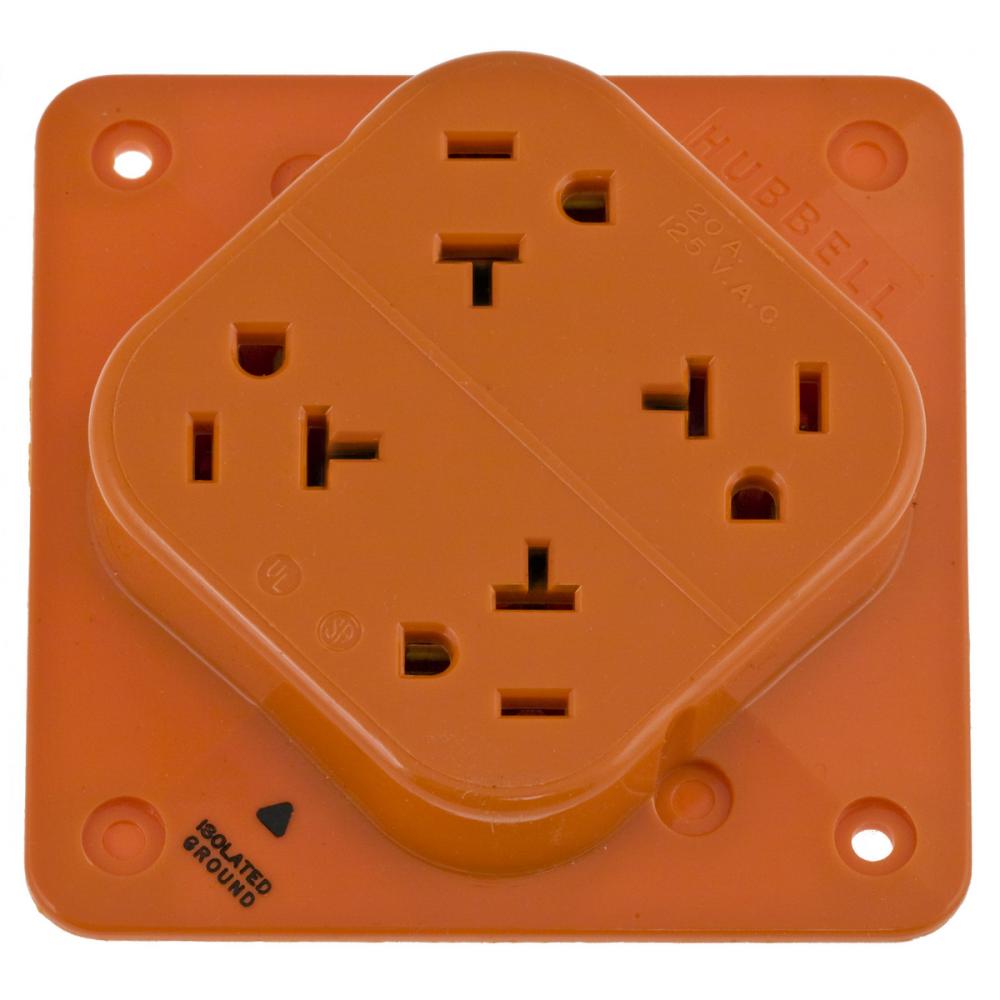

HBL IG420 by Hubbell Wiring Device-Kellems
- Part Number: IG420
- UPC: 00783585422275
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK IG420 RCPT, 4PLEX, IG, 20A 125
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Commercial Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Orange
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Polycarbonate
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
4.30 in x 0.92 in x 4.30 in
Spec Sheet:
Special Features:
Isolated Ground
Standard:
Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA® WD-6 Compliant
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
4- Plex Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.400 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
